Another vote for archtop!

17 Posts
4 Users
82 Reactions
1,279 Views
jamesbisset
(@jamesbisset)
Noble Member
Luthier
Rep Points: 1489
Joined: 5 years ago
Posts: 303
Topic starter

I built a couple of guitars in my youth, and assembled a couple of partcasters in my sensible years, but having discovered guitarmaking.co.uk, I’m itching to try a semi-acoustic. My current guitar is an enormous,  bright orange Yamaha AES 1500, but it’s hard to smuggle into folk clubs without being spotted. so I’m thinking of a smaller bodied semi with mini humbuckers, a wraparound bridge sitting on an internal block/pillar and very subdued natural wood finish.

I also want the neck to join the body at 17 fret and the fret board with just 20 frets, so I can get the neck pickup right up there for the Oooo tone (using vowels to describe pickup tone there - from O through to E).

How many gotchas have I walked into so far?

Jack of all trades and master of my own destiny. It’s only a small destiny.



mattbeels, Boo, mattbeels and 1 people reacted
Quote
jamesbisset
(@jamesbisset)
Noble Member
Luthier
Rep Points: 1489
Joined: 5 years ago
Posts: 303
Topic starter

The Yamaha AES 1500 has a body length of 535mm and lower bout width of 430mm, so I’ve scaled that down to match the dimensions of a poor abused Vox Tornado which I bought for £40 in Africa a lifetime ago. I stripped it apart, stuck a block of oak in it, painted it yellow and bound it with faux tortoiseshell.

I’m working out pickup positions with the aid of my Dan Armstrong (London) sliding pickup guitar, complete with the simple wraparound bridge.

But I’m struggling with the location of the various controls (switch, volume and two tone) which are competing with the ƒ holes.

Pictures and design when I work out how to add images

Jack of all trades and master of my own destiny. It’s only a small destiny.



mattbeels, Boo, mattbeels and 1 people reacted
ReplyQuote
jamesbisset
(@jamesbisset)
Noble Member
Luthier
Rep Points: 1489
Joined: 5 years ago
Posts: 303
Topic starter

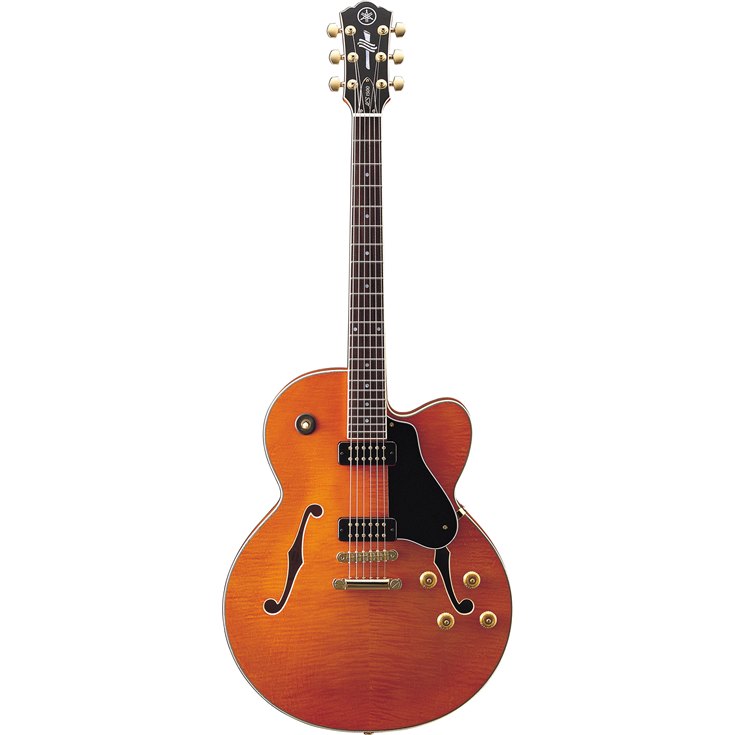

Yamaha AES1500

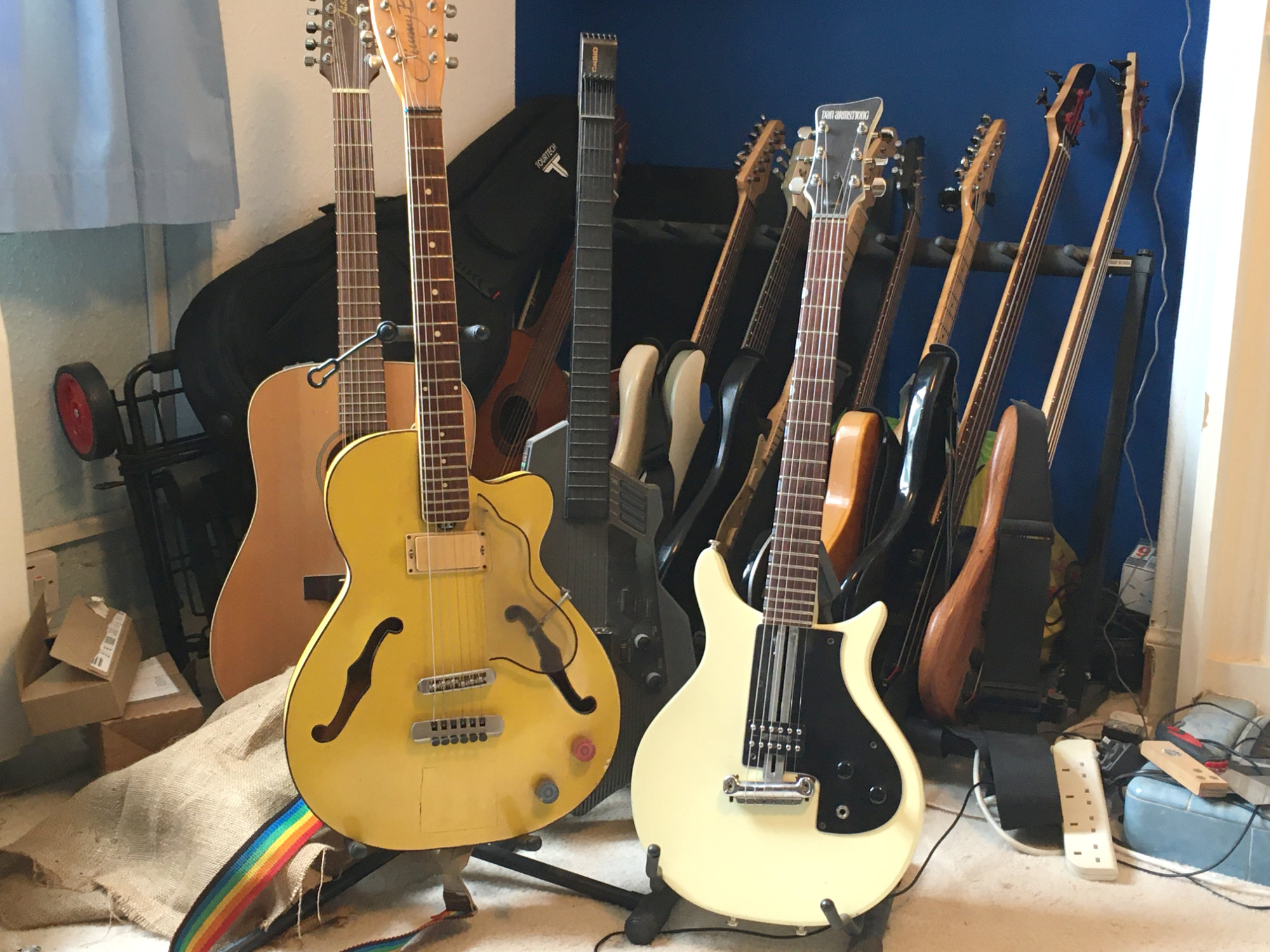

photo of a yellow Vox Tornado and white Dan Armstrong

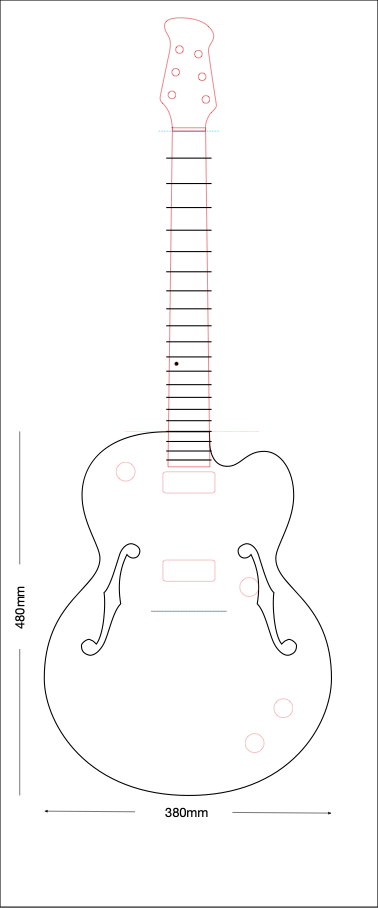

drawing of proposed semi-acoustic

Jack of all trades and master of my own destiny. It’s only a small destiny.



mattbeels, Boo, mattbeels and 1 people reacted
ReplyQuote
mark bailey
(@markbailey)
Admin
Guitar Making God
Joined: 7 years ago
Posts: 885


Remeber that you would actually have to install the controll knobs thru the f-holes - that is why they are usually located fairly close to the opening. You might need small hands or a nimble friend with small hands to help out!

Measure twice, cut once...



mattbeels, Boo, mattbeels and 1 people reacted
ReplyQuote
jamesbisset
(@jamesbisset)
Noble Member
Luthier
Rep Points: 1489
Joined: 5 years ago
Posts: 303
Topic starter

@markbailey This might upset you:

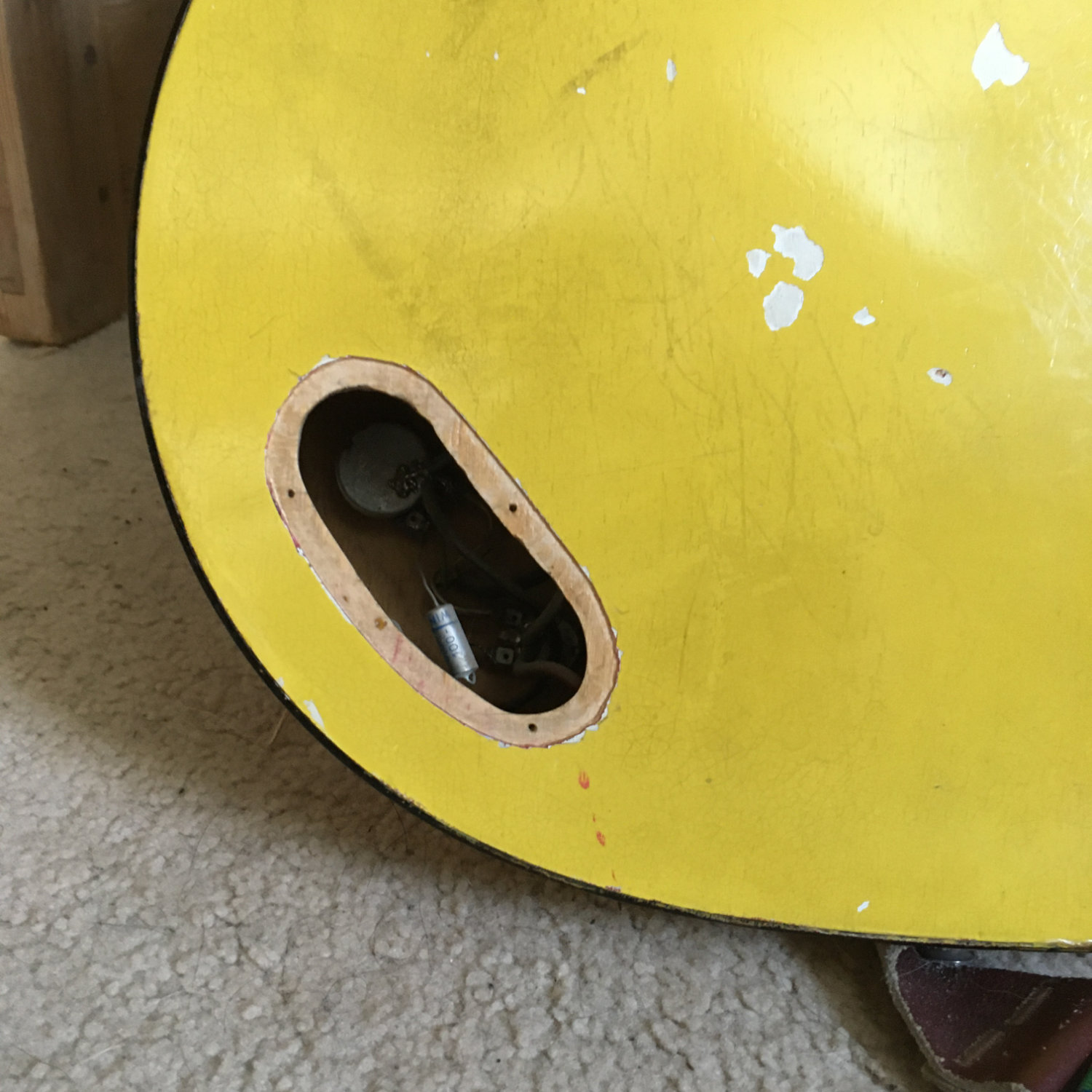

hole in the back of the yellow tornado
