Binding Router Jig

  RSS

syntholabo
(@syntholabo)
Adept
Rep Points:174
Hero:134
Joined:12 months ago
Posts: 82
10/07/2019 4:47 pm

I was just about to throw out this cheap LIDL drill alignment jig, when this thought occured:

IMG 2371
IMG 2372
IMG 2373

I turned the handle and carrying assembly upside down, and found that it held the Bosch trimmer perfectly with allen bolt tightening ability. You can see that it can be set up almost square to the bench surface below.

Now I know this is not a binding cutter, but I'm using it to assess trueness.

I can apply manual pressure on the lever to raise the router, and it is forcefully pulled back down by a very tight spring (I could not hold my fingers in the way when re-assembling the thing- it is very strong).

I don't understand how a commercial jig that does this, allows the router to ride up and down freely as the guitar body passes under it?

Does anyone think this is a go-er, once I build the body clamping jig to go with it?

Cheers y'all








mark bailey
(@markbailey)
Guitar Making God
Hero:9999405
Joined:2 years ago
Posts: 292
10/07/2019 5:50 pm

Hi

The router should be able to move freely up and down to follow the shape of the back - on my binding jig it moves smoothly on a linear bearing - there are no springs...

https://www.stewmac.com/Luthier_Tools/Types_of_Tools/Jigs_and_Fixtures_for_Guitar_Building_and_Repair/TrueChannel_Binding_Router_Jig.html

More importantly your cutter is UNGUARDED - ....please don't switch it on!





Measure twice, cut once...


ReplyReplyQuote
syntholabo
(@syntholabo)
Adept
Rep Points:174
Hero:134
Joined:12 months ago
Posts: 82
10/07/2019 5:55 pm

Sure - I'm nowhere near switching this jig on!

I see that there's an extra surface to register the body surface on... will keep thinking.

The cutter will always be unguarded with this application no? Ah... i see that it hides within the donut thingy.

I will remove spring and see what the motion feels like.





This post was modified 5 months ago 2 times by syntholabo

ReplyReplyQuote
mark bailey
(@markbailey)
Guitar Making God
Hero:9999405
Joined:2 years ago
Posts: 292
11/07/2019 12:26 pm

The cutter will always be unguarded with this application no? Ah... i see that it hides within the donut thingy.

The cutter will inevitably have to protrude a little bit (by the same amount as the depth of cut) but this is OK.

Measure twice, cut once...


ReplyReplyQuote
syntholabo
(@syntholabo)
Adept
Rep Points:174
Hero:134
Joined:12 months ago
Posts: 82
22/07/2019 8:00 pm

So here it is

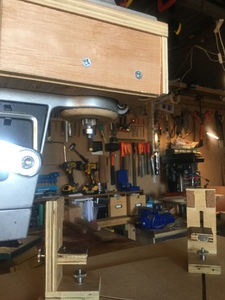

The router moves up and down freely, and there is a riding nub which protects the cutter (here it is at full extension- I had to buy a 1/4" collet extender and build up the router base).

Still need to shape the cradle to allow full access all the way round.

IMG 2308
IMG 2307

The only issue I can see is that the router has 2mm lateral play due to the re-purposed LIDL drill alignment jig's mechanism, but it is actually solid in the forward / backwards plane.

Did I save £200? Bloody hope so!
