Posted by: @tv101

↑

You’ve had a busy couple of days Russ!

A very long couple of days @tv101. 😉

🎸🎶🙏🙂

The next stage was to partially carve the ends of the other Top Braces prior to gluing them in place as it can be a little more difficult when glued up against the X-brace.

 🙂🎸🎶🙏

Then using some "harvested" wood from the soundboard, I made the soundhole plate

🙏🎶🎸🙂

Plane the plate down to 2mm thickness.

Then cut it out to shape.

🙂🎸🎶🙏

Then glue it in place. Clamp the X-brace and top brace in place to initially hold it in place

🙏🎶🎸🙂

Then made the bridge plate using "harvested" wood from the back.

🙂🎸🎶🙏

Then glue it in place. Clamp the X-brace in place again initially to hold it in.

🙏🎶🎸🙂

Ready to have all the braces glued in place.

🙂🎸🎶🙏

Whenever I see an acoustic build, I think to myself "maybe I should have a go".

And then when I read all the detail of the build, and realise all the skill and accuracy needed, I think to myself "maybe I'll build another electric".

Great work Russ.

Posted by: @tv101

↑

Whenever I see an acoustic build, I think to myself "maybe I should have a go".



And then when I read all the detail of the build, and realise all the skill and accuracy needed, I think to myself "maybe I'll build another electric".



Great work Russ

Cheers @tv101. Looking at the work you have done on your electric builds, I think you could do an acoustic build. It's the same process..... just a few more little jobs involved.

🙏🎶🎸🙂

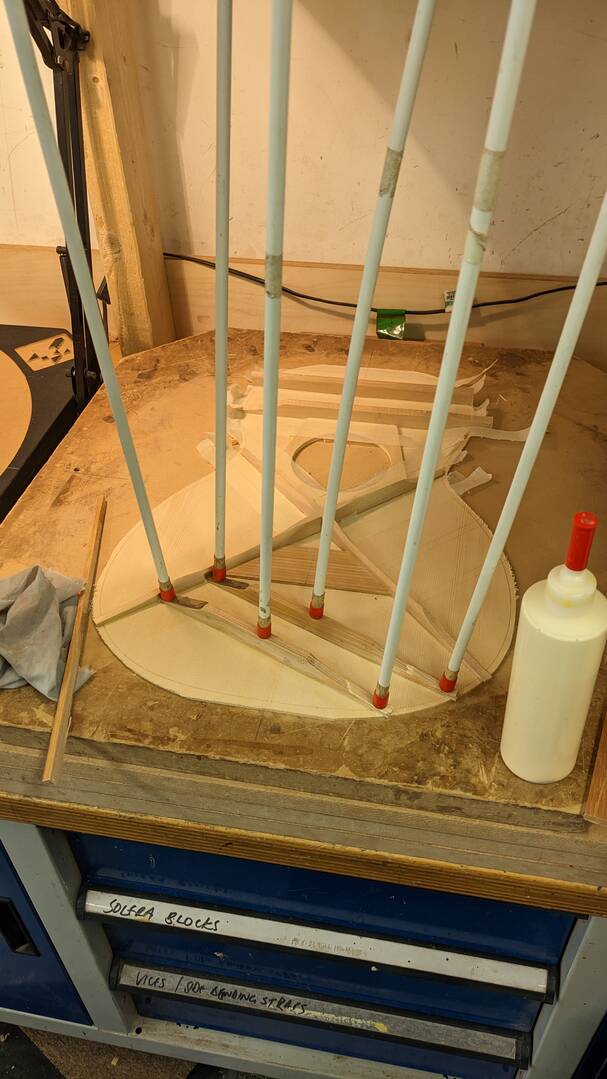

Next, I glued on the X-brace and the Upper Bout braces.

🙂🎶🎸🙏

.....then set about carving them down....

....and a bit more....

.....and more ......

 🙏🎸🎶🙂

Then gluing on the Lower Bout braces and the Outer Edge braces

🙂🎶🎸🙏

And even more carving........

.....and more .......

.....and a bit more......

🙏🎸🎶🙂

Then a bit of sanding before it's ready.....

🙂🎶🎸🙏

I almost forgot.......

A small cap over the join of the X-brace clamped on........

.....and shaped.

🎶🎸🙏🙂

@tv101 I built one in my life. An archtop. Took me almost a year. I totally concur with you.

@russ Moving along quite nicely. Keep at it. Top job!

Posted by: @clinton

↑

@russ Moving along quite nicely. Keep at it. Top job!

Cheers @clinton.

🎸🙂🎶🙏

Joining the back. I'm using cherry for this one.

🙏🎶🙂🎸
