Then cutting it to size.

PXL 20230308 090515324
PXL 20230308 090345185

🙏🎶🙂🎸

πŸ—οΈ "Life's what you make it"πŸ—οΈ



tv1, Koendb, Robin and 1 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558
Topic starter

Then plane and scrape it flush with the sides.

PXL 20230308 090636647
PXL 20230308 092125991

🎸🙂🎶🙏

πŸ—οΈ "Life's what you make it"πŸ—οΈ



tv1, Koendb, Peter C-F and 1 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558
Topic starter

Then a wee bit of sanding.

PXL 20230308 094309064

🙏🎶🙂🎸

πŸ—οΈ "Life's what you make it"πŸ—οΈ



tv1, Koendb and Robin reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558
Topic starter

Next I routed out the purfling channel on the soundboard.

PXL 20230310 143311712
PXL 20230310 143151037

🎸🙂🎶🙏

πŸ—οΈ "Life's what you make it"πŸ—οΈ



tv1, Koendb, Peter C-F and 1 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558
Topic starter

Then made the purfling for the top edges. Gone for simple black/white/black.

PXL 20230315 095311820
PXL 20230315 112848764

🙏🎶🙂🎸

πŸ—οΈ "Life's what you make it"πŸ—οΈ



tv1, Koendb, Peter C-F and 1 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558
Topic starter

Then glued it on.

PXL 20230315 140745113
PXL 20230315 135124324

🎸🙂🎶🙏

πŸ—οΈ "Life's what you make it"πŸ—οΈ



tv1, Koendb, Peter C-F and 1 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558
Topic starter

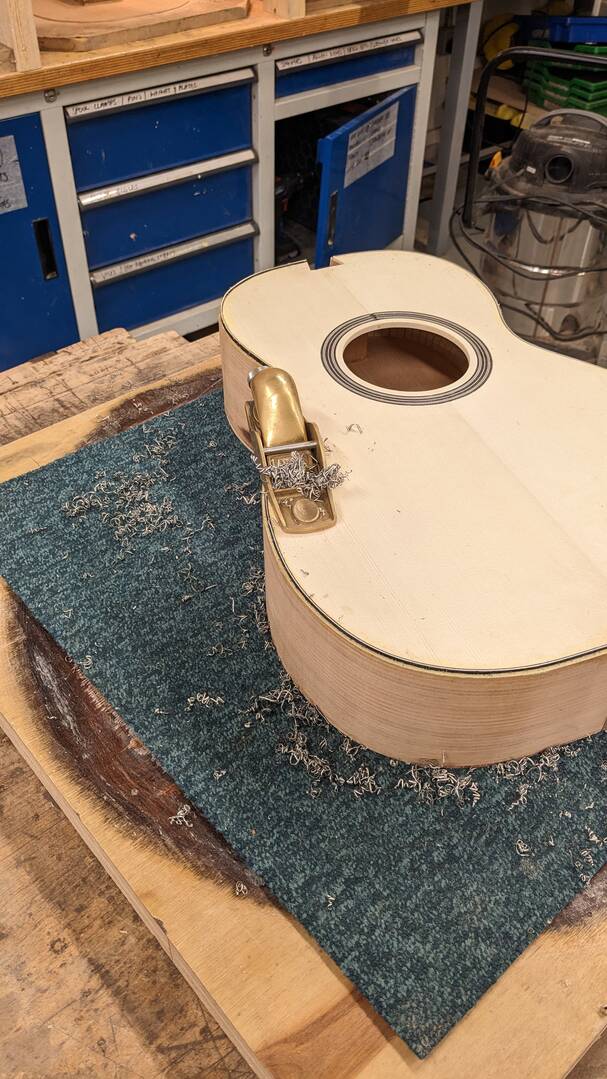

Then planed and scraped it flush with the soundboard surface.

PXL 20230316 092438352
PXL 20230316 093516636

🙏🎶🙂🎸

πŸ—οΈ "Life's what you make it"πŸ—οΈ



tv1, Koendb, Peter C-F and 1 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558
Topic starter

Next I prepared the binding for both the top and the back.

PXL 20230310 115107233
PXL 20230310 114032134

I then held it in place in the mould.

PXL 20230310 120828239

🎸🙂🎶🙏

πŸ—οΈ "Life's what you make it"πŸ—οΈ



tv1, Koendb, Peter C-F and 1 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558
Topic starter

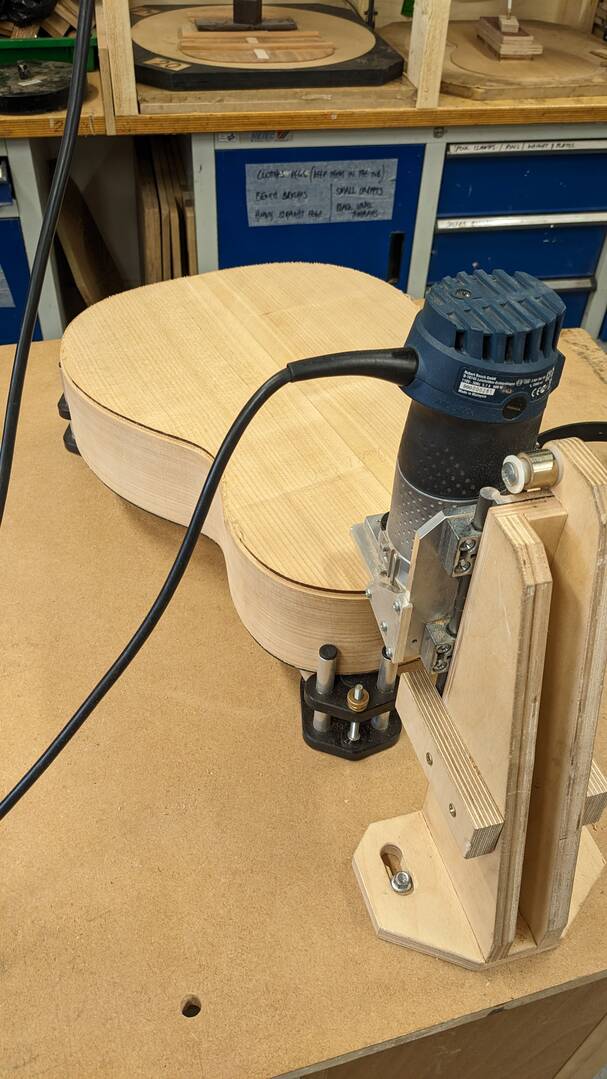

Then I routed out the binding channel on the top and the back.

PXL 20230316 114757822
PXL 20230316 114607223

🙏🎶🙂🎸

πŸ—οΈ "Life's what you make it"πŸ—οΈ



tv1, Koendb, Robin and 1 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558
Topic starter

Then glued the binding on. First to the top .....

PXL 20230316 142354315
PXL 20230316 142349429
PXL 20230316 151526232

And then to the back....

PXL 20230316 160350732

🎸🙂🎶🙏

πŸ—οΈ "Life's what you make it"πŸ—οΈ



tv1, Koendb, Peter C-F and 1 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558
Topic starter

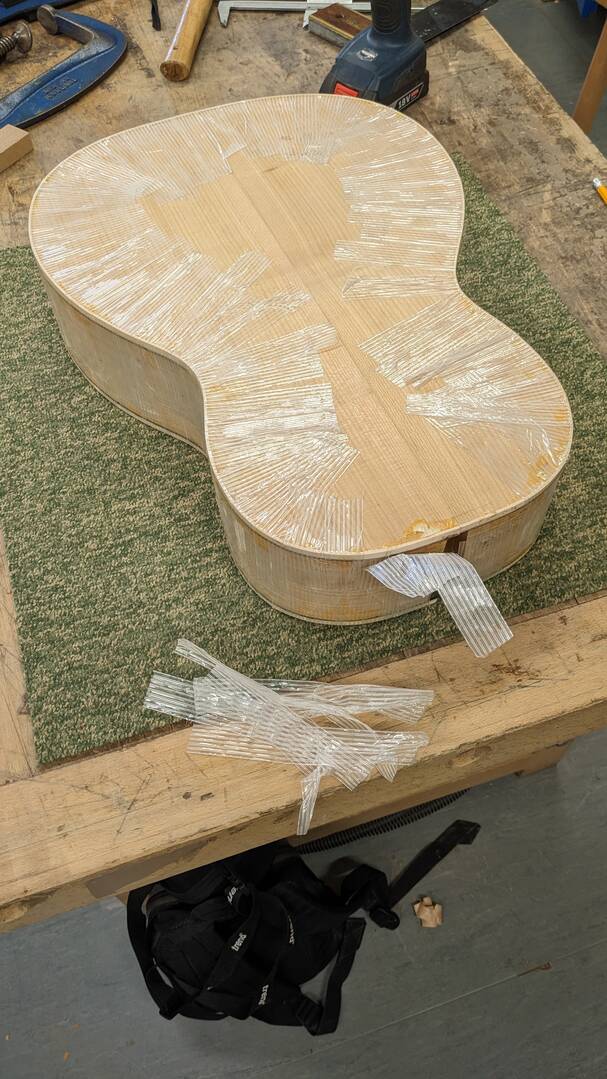

Then I had to get the tape off again. A gentle heat with the heat gun....

PXL 20230317 115348622
PXL 20230317 114109218

🙏🎶🙂🎸

πŸ—οΈ "Life's what you make it"πŸ—οΈ



tv1, Koendb and Robin reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558
Topic starter

Then I planed and scraped the binding flush with the body....

PXL 20230317 120909010
PXL 20230317 135839838

Then a wee bit of sanding.....

PXL 20230317 133146109
PXL 20230317 142151208

.... and a wee bit more.....

PXL 20230317 142655771

🎸🙂🎶🙏

πŸ—οΈ "Life's what you make it"πŸ—οΈ



tv1, Koendb, Peter C-F and 1 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558
Topic starter

Now a bit of refinement of the dovetail joint to get an accurate fit. First I created a small chamfer along the edges.

PXL 20230331 110754914
PXL 20230331 110953368

Then fine adjustment of the tenon until it fits

PXL 20230331 105821597

🙂🙏🎶🎸

πŸ—οΈ "Life's what you make it"πŸ—οΈ



tv1, Koendb, Peter C-F and 1 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558
Topic starter
PXL 20230331 151125044
PXL 20230331 151020123

Using a straight edge and neck angle jig to get it straight and at the correct neck angle

🎸🎶🙏🙂

πŸ—οΈ "Life's what you make it"πŸ—οΈ



tv1, Koendb, Peter C-F and 1 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558
Topic starter

It's almost impossible to get it right first time so a few wee adjustments by gluing on some veneers.

PXL 20230420 141816698
PXL 20230420 105917180

🙂🙏🎶🎸

πŸ—οΈ "Life's what you make it"πŸ—οΈ



tv1, Koendb, Peter C-F and 1 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558
Topic starter

Keep checking the angle and straightness against the centre line.

PXL 20230420 090122950~2
PXL 20230420 090036380

🎸🎶🙏🙂

πŸ—οΈ "Life's what you make it"πŸ—οΈ



tv1, Koendb, Peter C-F and 1 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558
Topic starter

Then I glued it in.

PXL 20230421 143102098
PXL 20230421 142310718

🙂🙏🎶🎸

πŸ—οΈ "Life's what you make it"πŸ—οΈ



tv1, Koendb, Peter C-F and 1 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558
Topic starter

Getting the fretboard in place. Using the rule to check its in line.

PXL 20230503 140818174
PXL 20230503 140837416

🎸🎶🙏🙂

πŸ—οΈ "Life's what you make it"πŸ—οΈ



tv1, Koendb, Peter C-F and 1 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558
Topic starter

Once the fretboard is in the right position it's held in place with two locating pins.Β

PXL 20230503 142937626

A little bit of sanding to the soundboard between the soundhole and the neck to ensure a smooth fit for gluing on.

PXL 20230504 090147492

🙂🙏🎶🎸

πŸ—οΈ "Life's what you make it"πŸ—οΈ



tv1, Koendb, Peter C-F and 1 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558
Topic starter

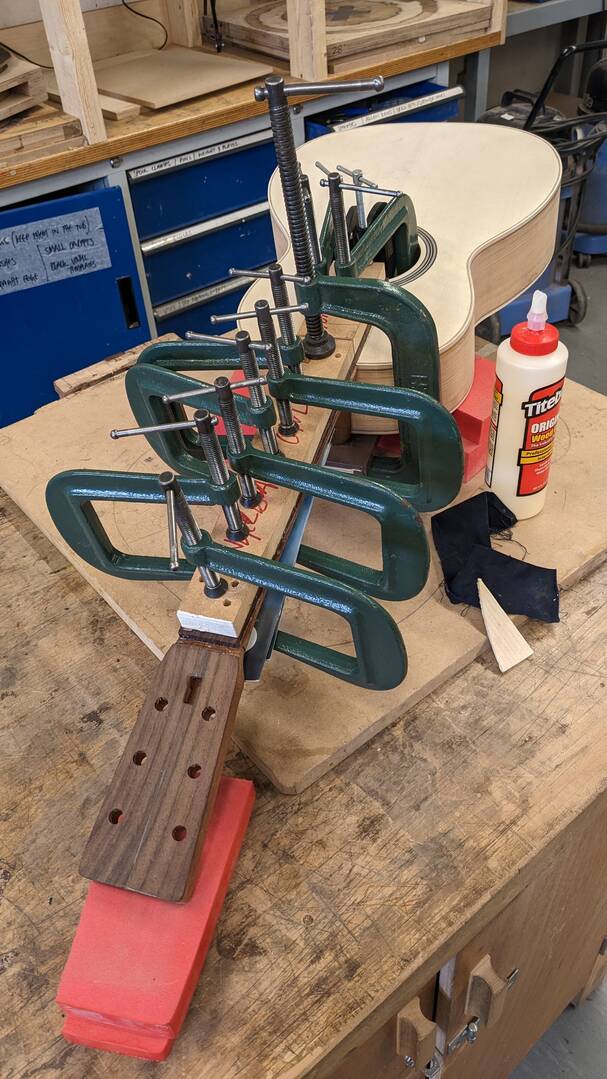

Then it's glued onΒ

PXL 20230504 112653625

🎸🎶🙏🙂
