During a hiatus in my acoustic build I thought I'd try my hand at 34" scale, bolt-on neck bass. Here's what happened...

Full scale drawing, a book-matched maple top from Surrey Timbers and piece of mahogany donated by a friend.

HP 170509 IMG 5353
HP 170515 IMG 5357
HP 170504 IMG 5339

Mahogany blanks and maple top both prepared and glued together.

HP 170517 IMG 5367
HP 170517 IMG 5366

Neck cut from a maple board, again from Surrey Timbers, truss rod installed and ebony 'board from Mark glued in place

HP 170605 IMG 5415
HP 170605 IMG 5416
HP 170606 IMG 5418

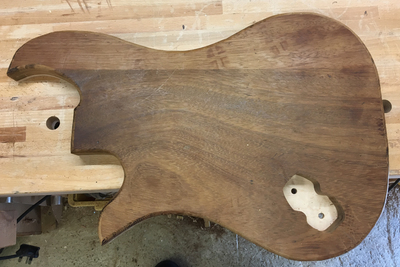

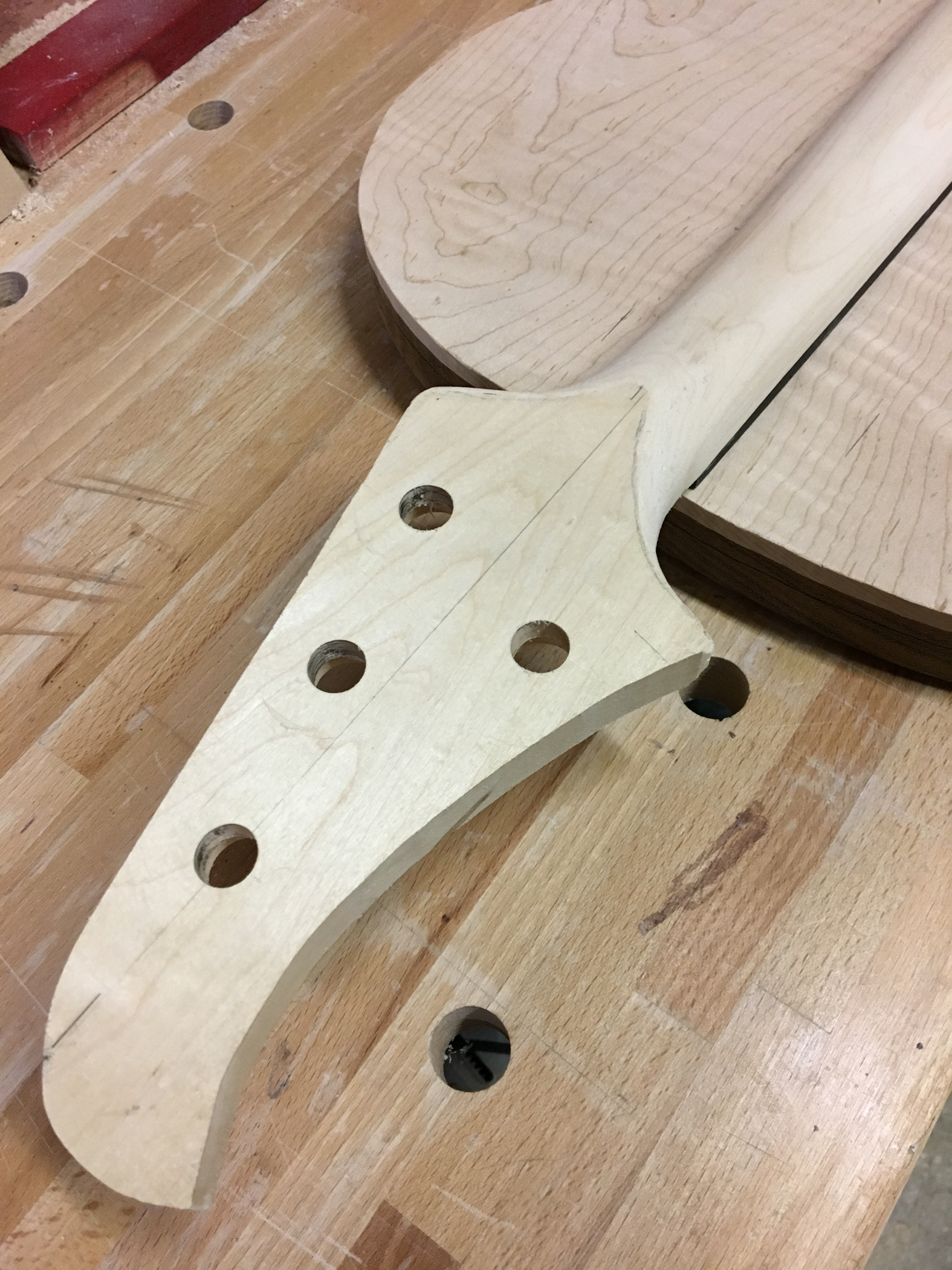

Neck carved, control cavity and neck pocket routed.

HP 170607 IMG 5422
HP 170610 IMG 5423
HP 170620 IMG 5479
HP 170620 IMG 5482

Thought I'd try my hand at binding the body... worked out pretty well.

HP 170622 IMG 5504
HP 170627 IMG 5511
HP 170627 IMG 5515

Dots in... and then it all went wrong... the dots about the 12th are all offset by 1!

Mark's solution worked a treat... routed out between the fret slots of the areas in error and replace the blocks with generous fresh ones using black CA glue. After sanding down and re-cutting the fret slots you'd never know. This probably would only work this well with ebony. Magic!

HP 170629 IMG 5519
HP 170704 IMG 5547
HP 170704 IMG 5553
HP 170704 IMG 5554
HP 170706 IMG 5561

Crimson Guitars black water-based stain throughout although heavily sanded back on the top. Followed this by multiple coats of Crimson Guitars finishing oil and Renaissance Wax.

HP 170711 IMG 5582

And here she is...

HP 170718 IMG 5609
HP 170718 IMG 5610
HP 170718 IMG 5613
HP 170718 IMG 5612
HP 170718 IMG 5611





tv1, Russ, nelbo and 9 people reacted
Quote
mark bailey
(@markbailey)
Admin
Guitar Making God
Joined: 6 years ago
Posts: 883


Bass-tastic - Glad to help!

Measure twice, cut once...



tv1, Boo, tv1 and 1 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 34813
Joined: 5 years ago
Posts: 3830


Love the bass Herb, nice build. It really is a good fix for the inlays, glad you got it sorted, I bet it felt like nightmare when you realised you had put them in the wrong place. I can just imagine that feeling in the stomach. I think it looks great and I love the headstock shape. A bass or two is on my todo list.

Make guitars, not war 🌍✌️🎸



tv1 and tv1 reacted
ReplyQuote
Carnivorous HERBivore
(@herb)
Reputable Member
Semi Professional
Rep Points: 395
Joined: 5 years ago
Posts: 95
Topic starter

yeah - it was sickening... hoorah for Mark eh!

I don't really play bass - you have to think differently don't you. I used cheap hardware thinking I can always upgrade if necessary. But it sounds great to me. Although it has a very slim neck it's quite a challenge for my pudgy little hands 😉



tv1, Boo, tv1 and 1 people reacted
ReplyQuote
mark bailey
(@markbailey)
Admin
Guitar Making God
Joined: 6 years ago
Posts: 883


Cheers Herb - I know that feeling very well ? but one thing I have learnt over the years is that there is always something you can do...

That's what I'm here for!

Measure twice, cut once...
