Thanks @bpower - nature is a wonderful thing!


Online guitar making courses โ€“ guitarmaking.co.uk



Boo, Koendb, Robin and 2 people reacted
ReplyQuote
tv1
 tv1
(@tv101)
Illustrious Member Customer Registered
Luthier
Rep Points: 28066
Joined: 5 years ago
Posts: 3037
Topic starter

Waxed & buffed

20230102 190653sml

ย

And first coat of the French polish on the back

20230102 191248sml

ย

I think the back is a piece of bicolour Ash.ย  I think.ย  It was originally intended as a (front) cap, but I've got more pieces of special front-caps than I'm ever going to use, so this piece was repurposed.


Online guitar making courses โ€“ guitarmaking.co.uk



Boo, Koendb, Robin and 2 people reacted
ReplyQuote
tv1
 tv1
(@tv101)
Illustrious Member Customer Registered
Luthier
Rep Points: 28066
Joined: 5 years ago
Posts: 3037
Topic starter

A before & after comparison to show the effect of the finishing on this one;

20230104 094017sml
20230104 094029sml

ย

Now waiting for the rear string ferrule block and some right-length neck bolts to arrive before I can finish the putting togethering.

20230104 110219sml

Online guitar making courses โ€“ guitarmaking.co.uk



Boo, Koendb, NSJ and 2 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29437
Joined: 5 years ago
Posts: 2568


@tv101.

CNC. It's Dynamite! 😂⚡🤣ย

🎸🙂🙏🎶


๐Ÿ—๏ธ "Life's what you make it"๐Ÿ—๏ธ



Boo, Koendb, Robin and 1 people reacted
ReplyQuote
tv1
 tv1
(@tv101)
Illustrious Member Customer Registered
Luthier
Rep Points: 28066
Joined: 5 years ago
Posts: 3037
Topic starter

So, which shape shall I set the machine on cutting next?

😋

ย

I do want to try a more extensively / noticeably carved top. ย This one is really more of a stretched or flattened round over rather than anything more shapely.

Iโ€™ve long fancied the idea of a semi-hollow Bandsman shaped guitar with a nicely carved top โ€ฆ.

ย

And I also want to try designing some pickup rings that arenโ€™t rings and are inset into the top of the guitar rather than protrude from it. ย

And Iโ€™m going to try some inlay designs, using the CNC to cut the designs with some contrasting powders for inlays.

ย

Lots to do.


Online guitar making courses โ€“ guitarmaking.co.uk



Boo, Bpower, Koendb and 3 people reacted
ReplyQuote
tv1
 tv1
(@tv101)
Illustrious Member Customer Registered
Luthier
Rep Points: 28066
Joined: 5 years ago
Posts: 3037
Topic starter

And here it is - finished.

ย

20230129 124152sml
20230129 124220sml

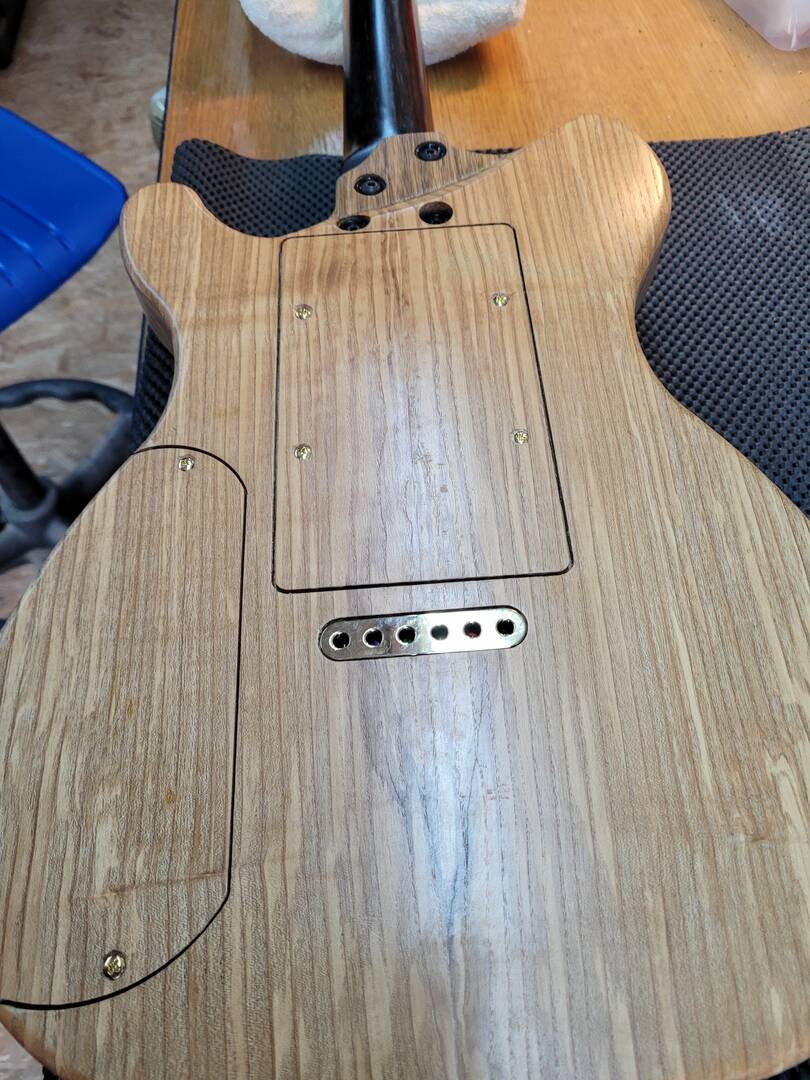

20230129 124233sml
20230129 124245sml

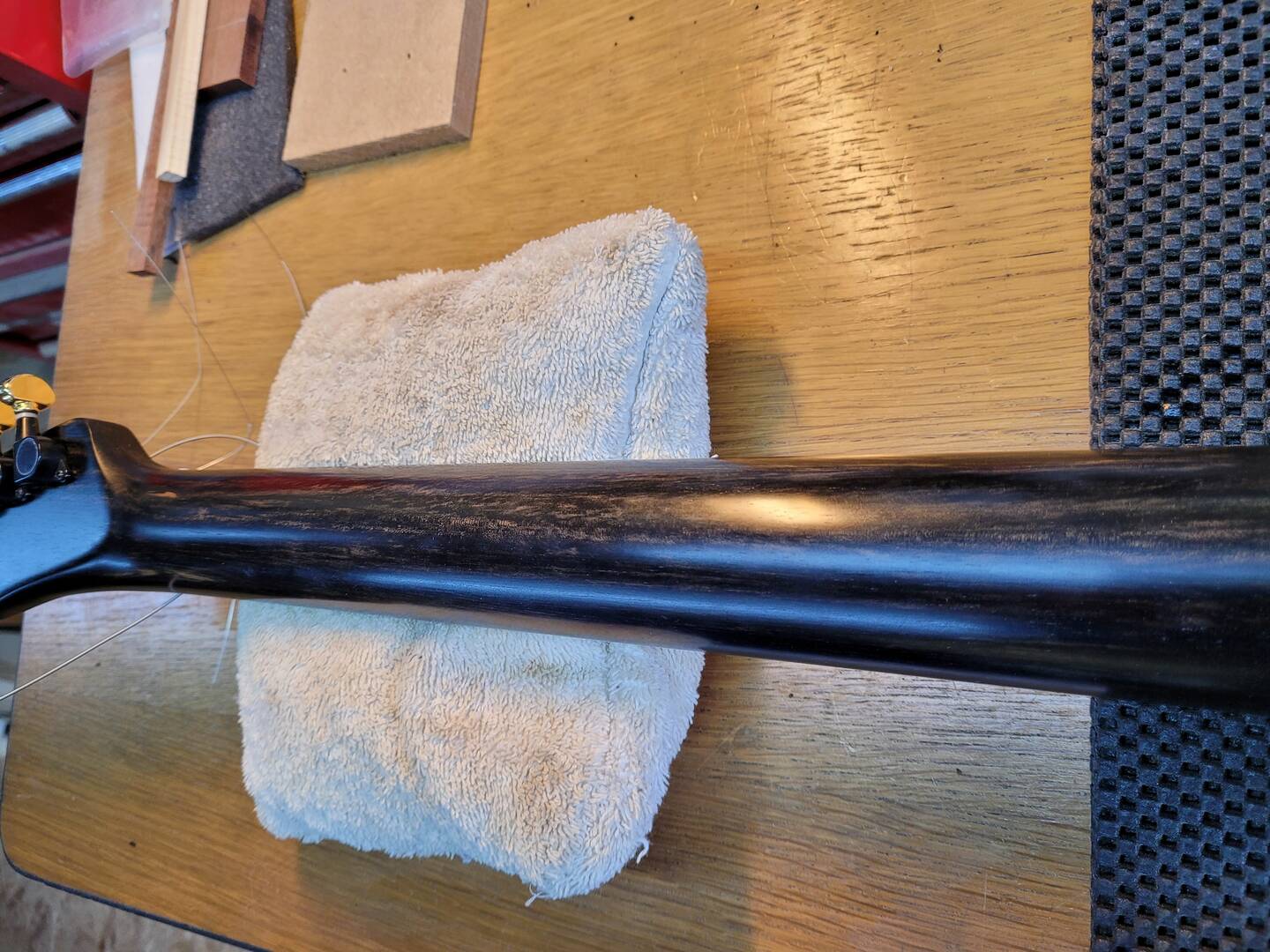

20230129 124253sml

ย

A couple of aesthetic things I'll tidy up - the jack plate is current chrome because I didn't have a black or gold one, so I'll sort that.ย  There's a chrome string tree on it too, which'll also get swapped next time I place an order with Axesrus. May also get a black cover for the neck pickup as the current chrome doesn't really fit with the black 'n' gold.ย  I've already got the gold pickup screws ...

ย

Needs a final intonation, but I'm just waiting for the neck to settle and tweak the truss rod (if necessary) before I do the final intonating.ย ย

ย

Quick plug in, quick strum, and I'm happy with itย  ๐Ÿ™‚


Online guitar making courses โ€“ guitarmaking.co.uk



Boo, swepri, Koendb and 3 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29437
Joined: 5 years ago
Posts: 2568


Nice one @tv101.ย

🙏🎶🙂🎸


๐Ÿ—๏ธ "Life's what you make it"๐Ÿ—๏ธ



Boo, Koendb and Robin reacted
ReplyQuote
Koendb
(@koendb)
Famed Member
Luthier
Rep Points: 11634
Joined: 5 years ago
Posts: 778


@tv101 Nice work! it looks great. 🤩 🙂ย  👍
