Template damage

  RSS

Boo
 Boo
(@boo)
Customer
Luthier
Rep Points: 20922
Joined:3 years ago
Posts: 2477
01/01/2021 7:24 pm

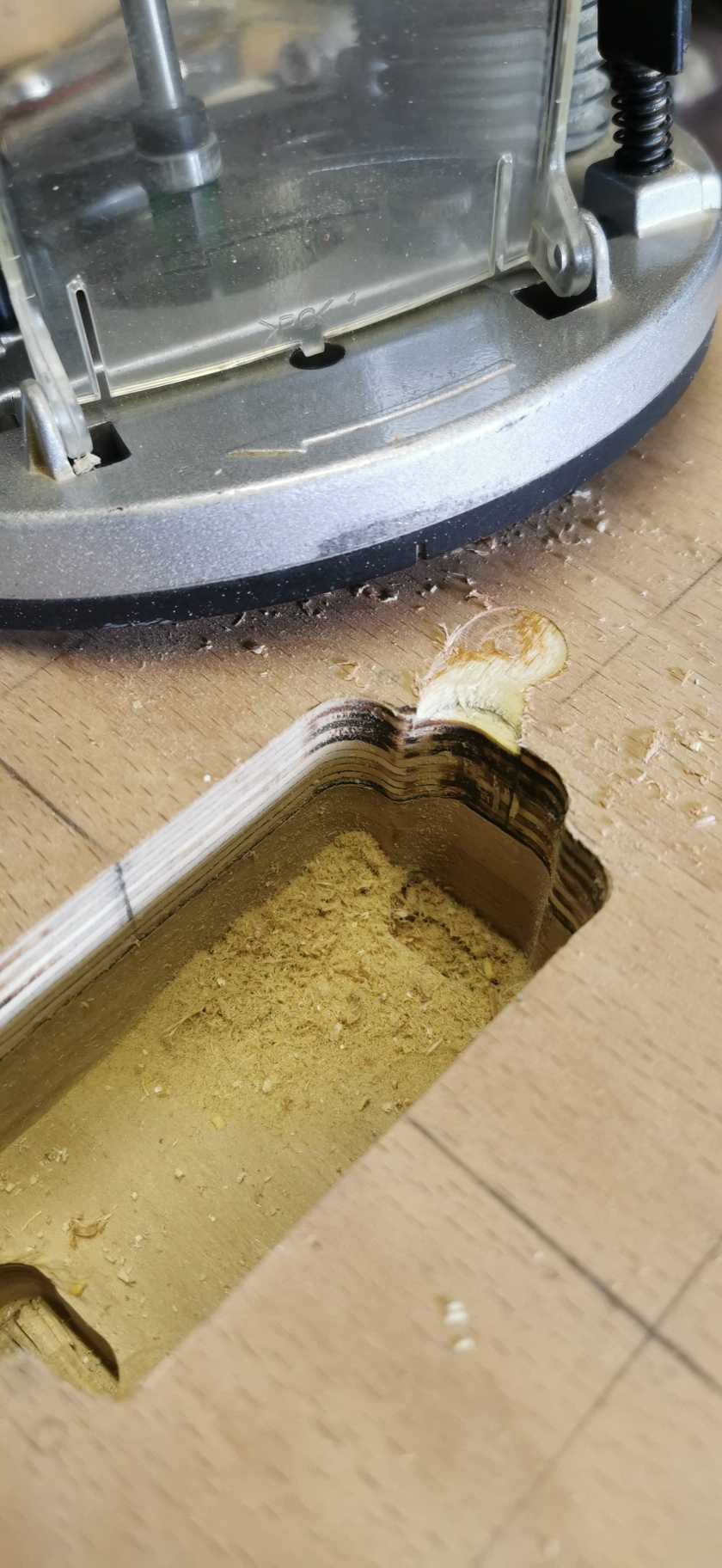

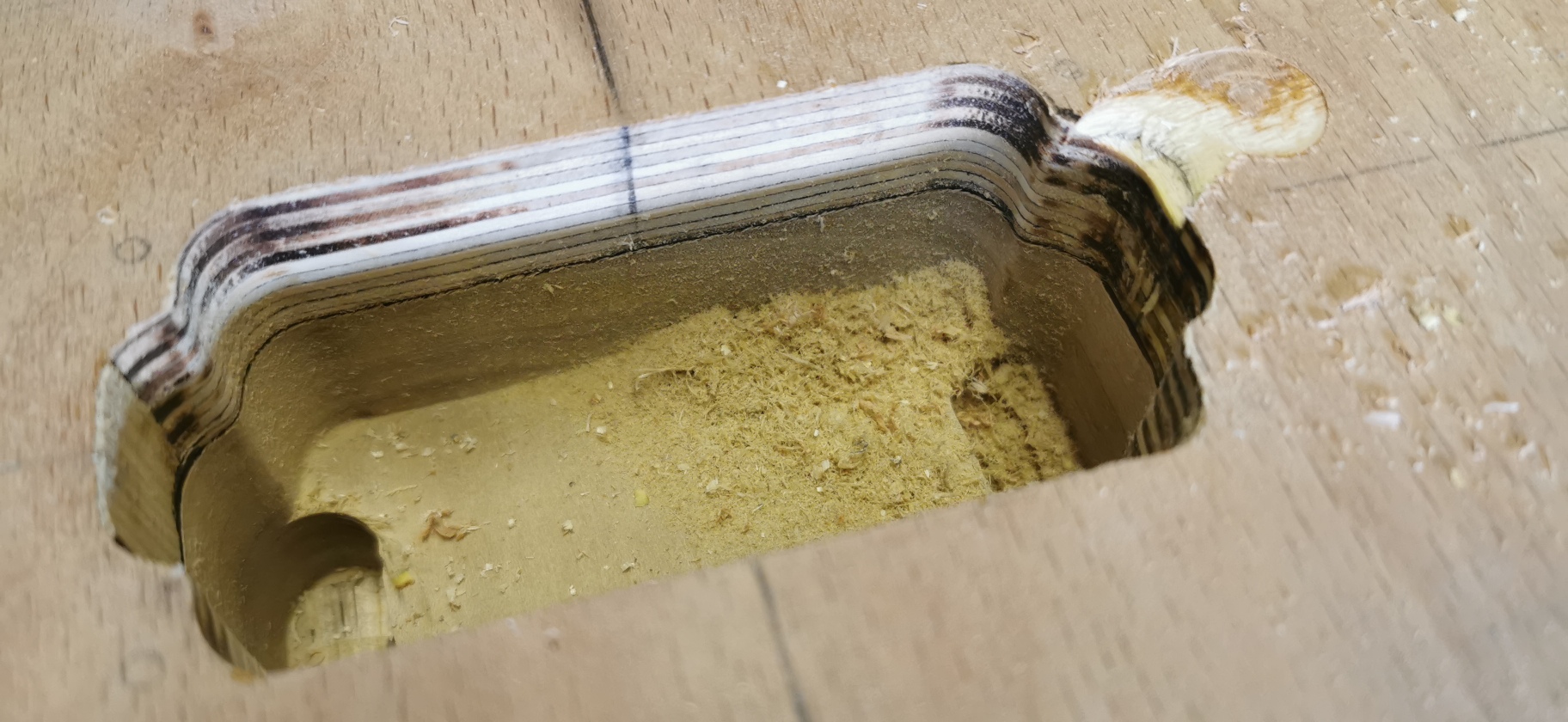

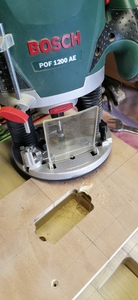

I managed to pull myself away from Christmas and New Year food and drink for long enough to get some time in the workshop today. I was routing a pickup cavity and slipped with the router when lifting it away from the workpiece. This is a common mistake, something I haven’t done for a while now but I still kick myself when I do it. The good thing is that the routing template I made was from 18mm MDF and I used a master, clear Perspex template to make it from. Now I have slipped and damaged the MDF one, I can just make another. I never use master templates on actual work pieces because accidents happen and if/when they do I have only damaged a copy, not the master. And, I wouldn’t want to buy a new template every time made a mistake.

Now I am the master! 🤣

BE12C795 A3A4 45D8 AD5C DCF50AC2EFEB
2EC0EF05 F5EF 45DD 9D50 271941B67C8C
2C2DF451 7312 44CE AB19 958C513210A9

Online guitar making courses – guitarmaking.co.uk


tv1, mattbeels and Russ liked
tv1
 tv1
(@tv101)
Luthier
Rep Points: 17995
Joined:12 months ago
Posts: 2086
04/01/2021 9:51 pm

The good thing is that the routing template I made was from 18mm MDF and I used a master, clear Perspex template to make it from.

That’s one of the many rule #1s @boo!  Just don’t let the router slip when you make your next copy template.

Online guitar making courses – guitarmaking.co.uk


Boo, mattbeels and Russ liked
ReplyReplyQuote
mark bailey
(@markbailey)
Guitar Making God
Joined:3 years ago
Posts: 756
09/01/2021 9:42 am

You can fix it with car body filler 🙂

Measure twice, cut once...


tv1, Boo, mattbeels and 1 people liked
ReplyReplyQuote
Rocknroller912
(@rocknroller912)
Luthier
Rep Points: 3622
Joined:9 months ago
Posts: 532
09/01/2021 5:46 pm

@boo

Halfords do a car body filler called chemical metal which is good for template repairs. It's harder than the basic stuff and stands up to repeated use with a bearing cutter. Very hard to rub down so only use s much as you need.

Don’t call us we’ll call you


tv1, mattbeels, Boo and 1 people liked
ReplyReplyQuote
Russ
 Russ
(@russ)
Luthier
Rep Points: 15091
Joined:11 months ago
Posts: 1161
09/01/2021 9:11 pm

Hey Guys,

I'm going to make another set of templates from my master templates. Will it be okay to rout straight through the MDF or will it cause it to rip out?

🗝️ "Life's what you make it"🗝️


tv1, mattbeels and Boo liked
ReplyReplyQuote
Boo
 Boo
(@boo)
Customer
Luthier
Rep Points: 20922
Joined:3 years ago
Posts: 2477
09/01/2021 10:23 pm

Will it be okay to rout straight through the MDF or will it cause it to rip out?

@russ I normally have a sacrificial piece of wood underneath the one I’m cutting/routing. Clamp both pieces down, stick (with NEC tape) your template on top and start routing using a short bit. Cut down 2 or 3mm at a time, go slow. Keep taking layers off until you have routed all the way through. Because you have clamped it down to the sacrificial piece, it prevents tear out.

Online guitar making courses – guitarmaking.co.uk


mattbeels and Russ liked
ReplyReplyQuote
Boo
 Boo
(@boo)
Customer
Luthier
Rep Points: 20922
Joined:3 years ago
Posts: 2477
09/01/2021 10:26 pm

chemical metal

@rocknroller912 @markbailey Oh yeah, I keep forgetting about a bit of bog! Cheers.

Online guitar making courses – guitarmaking.co.uk


mattbeels and Russ liked
ReplyReplyQuote
Russ
 Russ
(@russ)
Luthier
Rep Points: 15091
Joined:11 months ago
Posts: 1161
09/01/2021 11:00 pm
Posted by: @

Cheers Boo. Thanks for the help.

🙏🎸🎶🙂

🗝️ "Life's what you make it"🗝️


tv1, Boo and mattbeels liked
ReplyReplyQuote
mattbeels
(@mattbeels)
Customer
Luthier
Rep Points: 14673
Joined:7 months ago
Posts: 916
09/01/2021 11:11 pm

I normally have a sacrificial piece of wood underneath the one I’m cutting/routing.

Good tip @boo

It would probably be easier (and more fun!) to just make a new template then dicking around with Bondo imo but hey, sometimes you gotta fix it!



Pratice on scrap...
