Sanding Dishes

  RSS

darrenking
(@darrenking)
Adept
Rep Points:204
Hero:234
Joined:4 months ago
Posts: 75
28/01/2019 10:07 am

Good morning,

Has anybody got experience of using sanding dishes?

Darren


mark bailey
(@markbailey)
Guitar Making God
Hero:9999681
Joined:12 months ago
Posts: 144
28/01/2019 11:02 am

Morning Darren - Yes !

I use mine for gluing and shaping braces

also for shaping the sides before fitting the back...

Was there something specific you wanted to know?

Measure twice, cut once...


ReplyReplyQuote
darrenking
(@darrenking)
Adept
Rep Points:204
Hero:234
Joined:4 months ago
Posts: 75
28/01/2019 12:02 pm

Just whether it would be a useful thing for me to make. Sounds like it is, so I'll machine one later today.

Thanks

Darren


ReplyReplyQuote
mark bailey
(@markbailey)
Guitar Making God
Hero:9999681
Joined:12 months ago
Posts: 144
28/01/2019 12:10 pm

Yeah - super handy - especially for fitting the back - would not be without mine. I get my sanding discs from Axminster

Measure twice, cut once...


ReplyReplyQuote
darrenking
(@darrenking)
Adept
Rep Points:204
Hero:234
Joined:4 months ago
Posts: 75
28/01/2019 5:20 pm

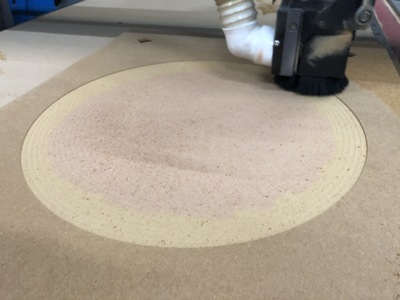

Machining my R4800 sanding dish. Rough cuts taken with a 9mm straight bit and then final passes with a 10mm ball nose cutter on 2mm pitch. This gave small ridges between the cuts but these were so insignificant that I didn't bother sanding them before bonding on a layer of formica to both sides with PVA. I wasn't sure it would confirm to the dish shape properly but a dry run in the vacuum press suggested that it would work fine. Not an essential step but one which will make replacing the abrasive paper much easier when it needs it.

IMG 7981
IMG 7980
IMG 7982
IMG 7985
IMG 7986
IMG 7989
IMG 7993
IMG 7996


ReplyReplyQuote
darrenking
(@darrenking)
Adept
Rep Points:204
Hero:234
Joined:4 months ago
Posts: 75
28/01/2019 11:37 pm

Ok, took it out of the press and put it through the sander to trim the laminate flush. Cut up an 80g sanding belt and stuck glue film on the back before carefully applying it the the machined did. Having stuck it all around the edges I then put it in the vacuum press to pull it down evenly into the dish to avoid any change of wrinkles. I figured if Formica can do it a sheet of sand paper should work too! And there we are! An R4800 sanding dish. Clamped the ziracote sides into the Mould and discovered that the side templates may not have been as accurate as I’d hoped! But 20 minutes of sanding and a small blister later all the pencil marks had gone and it all looked good. The great thing about a spherical sanding surface is that you don’t have to worry about alignment as every part of the surface has identical geometry. Time to make the flat board to do the front edge. Easier and quicker and less sanding (10 minutes, no additional blisters) and I have one body ready to receive its soundboard.

08F0607E 6C84 424A 892C 81F7C939940A
97458E5F B5E1 4A18 B27C 3029644F5B8C
52E0A486 8652 4013 952C 06965C51C5CE
FB097C0F 1146 4D97 BB6E 71BB1AB71B5D
1BA40967 0B6A 4601 8F91 7BF31467A36E
5AF8C52F 96DC 4C12 BB4F 5EBDDD5F6CBD
1B6725C7 E609 4697 9D30 4CB5559F6389


ReplyReplyQuote
darrenking
(@darrenking)
Adept
Rep Points:204
Hero:234
Joined:4 months ago
Posts: 75
28/01/2019 11:39 pm

D8B30AB7 EC35 4944 B8BF 42FFD281D918
0E790417 637D 43F7 8F56 C0FD313D1FA5
E1033D62 975D 4D02 9774 150016B334DD
