@mikeyrjiom many thanks....not sure yet. I am hoping to get back into building after 18 months off due to work commitments.

I’m possibly going to finish off my acoustic build and finish off a Tele thinline I started a while back..

I have too many guitars...said no one in the world..ever!



ReplyQuote
tv1
 tv1
(@tv101)
Illustrious Member Customer Registered
Luthier
Rep Points: 27896
Joined: 4 years ago
Posts: 3017

Posted by: @david-johnson09

I made a tribute build to the Bailey exotica at The Bailey workshop.

7BC9885A 3093 4DAE AD0B EF3826AC8861

Love the thru-neck.  I love most thru-necks to be honest!

Online guitar making courses – guitarmaking.co.uk



mark bailey, Deej, mark bailey and 1 people reacted
ReplyQuote
Bill Flude
(@frocesterbill)
Famed Member
Luthier
Rep Points: 3827
Joined: 5 years ago
Posts: 655


I think the Exotica is a stunning guitar - on my list but with Super-Strat pickup config - possibly with a Floyd Rose - it was going to be my next workshop build with Mark until the 335 rumours.........

Measure once........
Measure again.........
Sod it - make tea!



mark bailey, Deej, mark bailey and 1 people reacted
ReplyQuote
Deej
 Deej
(@deej)
Famed Member
Luthier
Rep Points: 10929
Joined: 5 years ago
Posts: 877


@tv1010101 thanks - she plays lovely. It’s the only 24 fret in my collection.

I have too many guitars...said no one in the world..ever!



ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 28609
Joined: 4 years ago
Posts: 2457

Posted by: @david-johnson09

I made a tribute build to the Bailey exotica at The Bailey workshop.

92BFDDE7 6D6A 42E5 814A F52AA44B42AF
E6C28B79 5B57 41CC 8710 E257A8F51CCF
4B295E3C 57D8 4B0D BCB0 5A6E512C9EE6
7BC9885A 3093 4DAE AD0B EF3826AC8861

Very impressed David. Great skill and beautiful wood. ✌️??

Cheers,

Russ

🗝️ "Life's what you make it"🗝️



mark bailey, Deej, mark bailey and 1 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 28609
Joined: 4 years ago
Posts: 2457

Posted by: @bcguitars74

Hi all!

Off the back of the workshop course (4 years ago now ? ) I have been trying to be quietly productive and after checking out the Exotica on the Bailey site, I decided I had to try a neck through. I also never tried a floyd rose before so I decided to take two bites at once.

I'm going to add pictures as soon as I work out how .. the "attach files" button isn't present here or on any other browser I try .. any ideas anyone?



Cheers!

Ben



Hello there Ben,

I'd still like to see your pictures if you are able to upload them.

Cheers,

Russ.??✌️

🗝️ "Life's what you make it"🗝️



ben, mark bailey, Deej and 3 people reacted
ReplyQuote
Deej
 Deej
(@deej)
Famed Member
Luthier
Rep Points: 10929
Joined: 5 years ago
Posts: 877


Found this



I have too many guitars...said no one in the world..ever!



mark bailey, Russ, mark bailey and 1 people reacted
ReplyQuote
Deej
 Deej
(@deej)
Famed Member
Luthier
Rep Points: 10929
Joined: 5 years ago
Posts: 877


And these





I have too many guitars...said no one in the world..ever!



mark bailey, Russ, mark bailey and 1 people reacted
ReplyQuote
Bill Flude
(@frocesterbill)
Famed Member
Luthier
Rep Points: 3827
Joined: 5 years ago
Posts: 655


I was hoping to try an Exotica build for my 2021 visit to the Bailey workshop until the 335 rumours started - would have done a SSH Super Strat pickup config, poss EMGs......

Otherwise I will have to try one here at home ?

Measure once........
Measure again.........
Sod it - make tea!



Deej, mark bailey, Deej and 1 people reacted
ReplyQuote
ben
 ben
(@bcguitars74)
Active Member
Enthusiast
Rep Points: 24
Joined: 2026 years ago
Posts: 6
Topic starter

@russ Looks like I can attach pictures now, nice one Mark!

This is it - it's a nod to the Peavey Wolfgang EVH but neck-through instead of bolt-on.

Spec-wise it's a cherry-maple-cherry laminate with a wenge fretboard, ambrosia maple cap and something unknown for the sides but which looks nice when oiled ?

I always wanted to have a Floyd rose guitar; now I have one I don't think I want another but fun all the same and gave me something different to build!

The inlay on the 12th and 24th frets are inlaid aluminium tubing filled with dust and epoxy.

It turned out a bit thin and I think the thickness between the bridge pickup and trem cavity is just over 2.5 mm; I had to do some creative pickup wiring too - through the trem cavity and then into the control cavity but hey it works and who looks inside the trem cavity anyway ... ?



IMG 20200128 100033
IMG 20200128 100022
IMG 20200127 204805
IMG 20200127 204754


ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 28609
Joined: 4 years ago
Posts: 2457


Very Nice Ben. I like the idea of the Floyd Rose and the wood looks great. ???

🗝️ "Life's what you make it"🗝️



ben and ben reacted
ReplyQuote
ben
 ben
(@bcguitars74)
Active Member
Enthusiast
Rep Points: 24
Joined: 2026 years ago
Posts: 6
Topic starter

So just a couple more pics here ..

I made the neck raised above the body so I could place a cap on:

IMG 20191128 144303

made a template for the cap:

IMG 20191129 174800

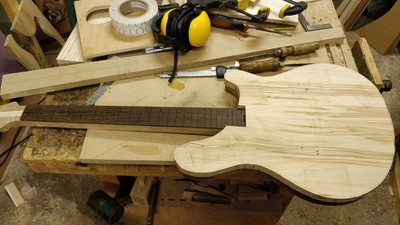

and then made the cap:

IMG 20191203 144603

I ended up having to recess the trem slightly - the plan was to engineer a roughly 2 degree angle into the top but due to the thinness I had to rethink it. There is nearly no neck angle, hence the need to recess:

IMG 20191219 145002

I sawed and bookmatched a little bit of leftover from the cap to make a headstock veneer:

IMG 20200122 151134

And then decided to go for an oil finish (mainly because I couldn't hang around waiting for lacquer to dry, then sand, then polish etc etc. I've had a good result previously from wet-sanding danish oil in, uo to about 1200 grit, this is it going on:

IMG 20200122 162711

And these are a couple of shots:

IMG 20200124 154652
IMG 20200124 154604

Cheers!

Ben







mark bailey, Russ, Deej and 3 people reacted
ReplyQuote
Bill Flude
(@frocesterbill)
Famed Member
Luthier
Rep Points: 3827
Joined: 5 years ago
Posts: 655


Looks lovely - good colour and shine!

Measure once........
Measure again.........
Sod it - make tea!



ben, mark bailey, ben and 1 people reacted
ReplyQuote
Bill Flude
(@frocesterbill)
Famed Member
Luthier
Rep Points: 3827
Joined: 5 years ago
Posts: 655


I’ve used fine artificial steel wool to apply oil after coat 1.

Measure once........
Measure again.........
Sod it - make tea!



ReplyQuote
Deej
 Deej
(@deej)
Famed Member
Luthier
Rep Points: 10929
Joined: 5 years ago
Posts: 877


Looks great

I have too many guitars...said no one in the world..ever!



ben, mark bailey, ben and 1 people reacted
ReplyQuote
mark bailey
(@markbailey)
Admin
Guitar Making God
Joined: 6 years ago
Posts: 883


And then decided to go for an oil finish (mainly because I couldn't hang around waiting for lacquer to dry

Been there!

Measure twice, cut once...



ReplyQuote
ben
 ben
(@bcguitars74)
Active Member
Enthusiast
Rep Points: 24
Joined: 2026 years ago
Posts: 6
Topic starter

Thanks guys, was fun to build 🙂 I'm still not sure if I'll ever get to like a Floyd rose but mine is definitely better than some I've picked up and played in shops (totally unbiased of course ? )
