New Year. New Guitar (build)

Page 1 / 2

tv1
 tv1
(@tv101)
Luthier
Rep Points: 22794
Joined: 2 years ago
Posts: 2436
Topic starter

I've got to build a new guitar.

Got. To.



I bought this neck last year, made by someone from whom I've bought a few necks over the years (including some really tasty solid Rosewood necks).





Online guitar making courses – guitarmaking.co.uk


Boo, Robin, Russ and 2 people liked
Quote
tv1
 tv1
(@tv101)
Luthier
Rep Points: 22794
Joined: 2 years ago
Posts: 2436
Topic starter

That's solid ebony, with gold frets.  Obvs bolt-on and TC shaped, so now I've got to come up with a suitable body design.  I'm not a great fan of slab-fronted Teles, so I'm thinking it'll be Tele-ish, but probably a carved top.

Had a quick look through my parts-cupboard over the holiday, and found a set of these ...

... which, as luck would have it, are black nickel covers (that's just dirt you can see on the pics, not damage to the covers) with gold pole pieces.

(Specs here)

I've got various options for body wood and cap (if I use a cap at all), trying to think up a suitable body design now.

The neck is reasonably heavy, so my previous vague idea of a building hollowbody probably won't work for this - I'll have to build a hollowbody another day.

Thoughts, peeps?

Online guitar making courses – guitarmaking.co.uk


Boo, Robin, Russ and 2 people liked
ReplyQuote
Russ
 Russ
(@russ)
Luthier
Rep Points: 23832
Joined: 2 years ago
Posts: 1985


How about something like this @tv101

109277 e337dfd1b72a23a158092c8315ae4f49

 🙂🎸🎶🙏

🗝️ "Life's what you make it"🗝️


Koendb, Boo and Robin liked
ReplyQuote
tv1
 tv1
(@tv101)
Luthier
Rep Points: 22794
Joined: 2 years ago
Posts: 2436
Topic starter

Yes @Russ - could well be something along those lines.

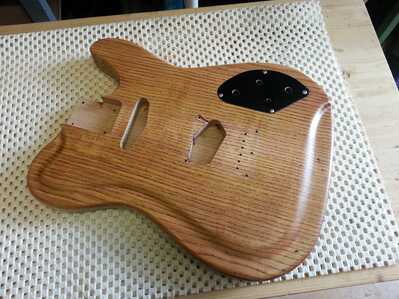

In years gone by I've experimented with shaping/carving the front of a Tele;

Jookification1

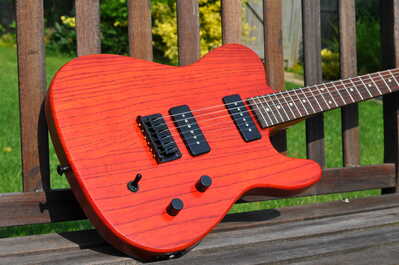

And also done a hardtail, twin P90s (in red, coincidentally!)

DSC 3798



Online guitar making courses – guitarmaking.co.uk


Robin, Koendb, Russ and 1 people liked
ReplyQuote
Boo
 Boo
(@boo)
Customer
Luthier
Rep Points: 32076
Joined: 4 years ago
Posts: 3626


@tv101 Nice neck. I would build a “black out” guitar with all that darkness. Cosmo black hardware (Gotoh maybe), bridge, tuners etc. You could leave the grain open on a nice slab of Ash, dye it black and seal it with something matt. Just think, shiny black chrome hardware, matt black body and that lovely dark neck. Just my thoughts. 👍

Make guitars, not war 🌍✌️🎸


Koendb, tv1, Robin and 1 people liked
ReplyQuote
tv1
 tv1
(@tv101)
Luthier
Rep Points: 22794
Joined: 2 years ago
Posts: 2436
Topic starter

Scarily @Boo, your thoughts are quite close to mine re the colour scheme.

Must mean I need to have a rethink.

😆

Online guitar making courses – guitarmaking.co.uk


Robin, Koendb, Russ and 1 people liked
ReplyQuote
Boo
 Boo
(@boo)
Customer
Luthier
Rep Points: 32076
Joined: 4 years ago
Posts: 3626

Posted by: @tv101

Must mean I need to have a rethink.

@tv101 🤣👍🍻

Make guitars, not war 🌍✌️🎸


tv1, Robin, Koendb and 1 people liked
ReplyQuote
tv1
 tv1
(@tv101)
Luthier
Rep Points: 22794
Joined: 2 years ago
Posts: 2436
Topic starter

Finally, I got some workshop time.

Found some wood...

That’s a slab of 45mm thick Ash,  more than wide enough for a single piece body.

Online guitar making courses – guitarmaking.co.uk


Boo, Koendb, Robin and 1 people liked
ReplyQuote
tv1
 tv1
(@tv101)
Luthier
Rep Points: 22794
Joined: 2 years ago
Posts: 2436
Topic starter

Then I did some drawings ...



the fainter and larger outline is from a Tele template.  The thicker and smaller outline is based on my old Gibson Nighthawk.

I shall be making a TeleHawk.
The headstock was preshaped to a Tele style, so I think the body needs some Tele references on it.

Online guitar making courses – guitarmaking.co.uk


Boo, Robin, Koendb and 1 people liked
ReplyQuote
tv1
 tv1
(@tv101)
Luthier
Rep Points: 22794
Joined: 2 years ago
Posts: 2436
Topic starter

And here we are ...



A few bits and pieces to tidy up, but job’s just about done I reckon.

🤣

Online guitar making courses – guitarmaking.co.uk


Clinton, Boo, Robin and 2 people liked
ReplyQuote
Russ
 Russ
(@russ)
Luthier
Rep Points: 23832
Joined: 2 years ago
Posts: 1985


Nice shape @tv101. Good to see you back building.

🎸🎶🙏🙂

🗝️ "Life's what you make it"🗝️


tv1, Boo, Robin and 1 people liked
ReplyQuote
Boo
 Boo
(@boo)
Customer
Luthier
Rep Points: 32076
Joined: 4 years ago
Posts: 3626

Posted by: @tv101

I shall be making a TeleHawk.

@tv101 What about a Terrahawk?

I don’t know how many people will get this joke. 🤣



30F39173 281A 4F1B BE8E DBE433FB0676

Make guitars, not war 🌍✌️🎸


Russ, tv1, Robin and 1 people liked
ReplyQuote
Boo
 Boo
(@boo)
Customer
Luthier
Rep Points: 32076
Joined: 4 years ago
Posts: 3626


@tv101 That’s some nice looking Ash. 👍

Make guitars, not war 🌍✌️🎸


Russ, tv1, Robin and 1 people liked
ReplyQuote
Clinton
(@clinton)
Customer
Luthier
Rep Points: 4338
Joined: 2 years ago
Posts: 628


@tv101 Nice! Looks like a Blueshawk. Tele style hardware or Gibson style?


tv1, Russ, Boo and 2 people liked
ReplyQuote
tv1
 tv1
(@tv101)
Luthier
Rep Points: 22794
Joined: 2 years ago
Posts: 2436
Topic starter

Good to be back @Russ - I'm just hoping that I can stick to "I've started, so I'll finish".  It was good r&r yesterday.  First time I've managed to do anything guitar-building related for many a month.

It's good solid stuff @Boo.  Bought a couple of 8' planks from a wood fair a few (7-8) years ago.  They've just been stuck at the back of the workshop.  Sadly, I could get a one-piece body width-wise (which wouldn't look right, IMHO), so there's a bit of waste, though I guess I could try making some Ash necks.

Posted by: @clinton

Looks like a Blueshawk. Tele style hardware or Gibson style?

There'll be a reason for that @clinton - I used my Nighthawk when I re-shaped the original Tele shape.  It's a bit of a combination, but the 'hawk shape is probably the dominant one.

And, consistent with that, the hardware will be a bit of a combination too - Tele-style bridge, couple of HBs, 5-way switch, etc.



Online guitar making courses – guitarmaking.co.uk


Koendb, Russ, Bpower and 3 people liked
ReplyQuote
tv1
 tv1
(@tv101)
Luthier
Rep Points: 22794
Joined: 2 years ago
Posts: 2436
Topic starter

Workshop time booked for tomorrow.



If I can remember the way out there.

Online guitar making courses – guitarmaking.co.uk


Robin, Koendb, Russ and 2 people liked
ReplyQuote
Koendb
(@koendb)
Customer
Luthier
Rep Points: 9262
Joined: 2 years ago
Posts: 624


@tv101 Enjoy! Whats the plan for tomorrow then?


Boo, Russ and Robin liked
ReplyQuote
tv1
 tv1
(@tv101)
Luthier
Rep Points: 22794
Joined: 2 years ago
Posts: 2436
Topic starter
Posted by: @koendb

Whats the plan for tomorrow then?

The plan was to get a bit more done than I actually got done - unfortunately I didn't manage to get as much time out there as I'd hoped.

Because that plank is one-piece, it's too wide for my planer-thicknesser, so out comes my surfacing bit and jig ...

20220129 153953

That's one mean bit!

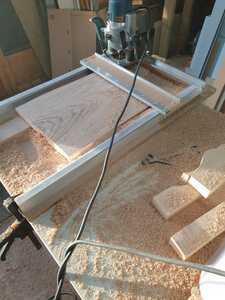

20220129 154641

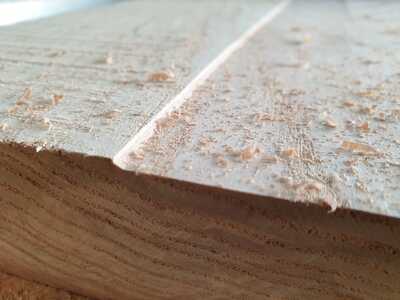

I aim to take off <1mm per pass

20220129 153942

Online guitar making courses – guitarmaking.co.uk


Bpower, Koendb, Boo and 1 people liked
ReplyQuote
tv1
 tv1
(@tv101)
Luthier
Rep Points: 22794
Joined: 2 years ago
Posts: 2436
Topic starter

A bit of sanding, and re-draw the outline ...

20220129 161846



I've got the scale length and neck pocket marked out.

First job in the morning (hopefully) will be to use my special @darrenking Bagpress neck pocket cutting jig to get the neck in place, then start to do some cavity-ing.



The body is now 40mm thick.  I'm pondering options for carving and cavitying.

I've got some off-cut from the plank that I could - possibly - slice and joint into a "top" for the back, and then I could make some special sound-enhancing cavities from the back.

Then I could add some not-f-hole-shaped f-holes into the top.  Maybe a carved top?

Hmmmm ....

Online guitar making courses – guitarmaking.co.uk


Clinton, Robin, Bpower and 3 people liked
ReplyQuote
Russ
 Russ
(@russ)
Luthier
Rep Points: 23832
Joined: 2 years ago
Posts: 1985


Nice job @tv101. Looking forward to seeing it develop.

🙂🎸🎶🙏

🗝️ "Life's what you make it"🗝️


Koendb, Robin and Bpower liked
ReplyQuote
