Apologies for double posting but I thought I should probably post this under its own topic rather than hijacking TV's heading.



Ok, here we go. There may be a couple of minor changes for the production version but here is the Bagpress Flattening Jig prototype. Very happy to hear your opinions, comments and suggestions.

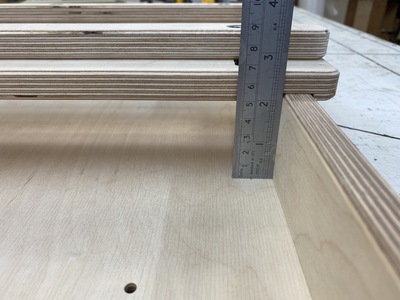

The prototype has a clearance of 50mm from the bed to the underside of the slide (is this enough?) and will take material up to about 380mm wide x about 560mm long. It doesn't currently have front and back stops for the router travel but if you guys think this is important then I can add these very easily, it will just make the slide section a bit wider. The side guides for the router are adjustable and should accommodate most routers, large or small.

The whole jig is currently constructed out of 18mm birch ply but using moisture resistant MDF for the base would reduce the costs a little if necessary and it wouldn't affect the operation or accuracy of the jig. I'll work out the price once I've had your feed back and incorporated any suggested alterations.

The top of the rails have been trimmed on my veneer saw which produces a very flat and accurate surface for the 5mm deep channels in the slider to run on. I don't think there is a need for any anti-friction material on the slider as a little bit of wax rubbed on the top of the rails produces a very smooth action.

The base is pre-drilled with multiple screw holes to allow for the blank to be securely held in the optimum position from the underside, and there are four holes in the corners to allow the jig itself to be screwed to a bench or a clamped baseboard.

IMG 2422
IMG 2423
IMG 2426
IMG 2431
IMG 2430
IMG 2429
IMG 2425
IMG 2427
IMG 2428
IMG 2432
Screen Shot 2021 04 18 at 16.32.23

What do you all think?

Cheers

Darren


Blake, tv1, Boo and 2 people liked
Russ
 Russ
(@russ)
Luthier
Rep Points: 15091
Joined:11 months ago
Posts: 1161
18/04/2021 5:06 pm

@darrenking.

We'll Darren, to my now semi trained eye, I think it is fantastic. I would imagine that 50mm is deap enough to do the job but I don't know why but something in the back of my head is saying 70mm. 🤔?

It's more great workmanship from you.

Cheers,

Russ

🙏🎸🎶🙂

🗝️ "Life's what you make it"🗝️


tv1, Boo and mattbeels liked
ReplyReplyQuote
mattbeels
(@mattbeels)
Customer
Luthier
Rep Points: 14673
Joined:7 months ago
Posts: 916
18/04/2021 5:30 pm

I think it looks great @darrenking!

The height of 50mm sounds good but perhaps it’s right on the edge? Most body blanks end up around 45mm but depending on how thick it is before planing, it could be a bit tight. A neck blank for a set neck is about 50mm when planed so someone correct me if I’m wrong but I’m guessing a bit more clearance may be a good idea.

I think it would definitely need to be longer to flatten neck blanks as well as they are around 700 mm or so depending on headstock, scale length, number of frets etc.

But maybe this is just designed for body blanks? If so then I’ll just see myself out...

Personally I think end stops would be a necessity to keep from accidentally going too far and ruining the slide.

Killer jig overall!

Pratice on scrap...


tv1, Boo and Russ liked
ReplyReplyQuote
darrenking
(@darrenking)
Customer
Luthier
Rep Points: 4205
Joined:2 years ago
Posts: 813
18/04/2021 5:42 pm

maybe this is just designed for body blanks?

Hadn’t thought about neck blanks. I could add about 80mm to the length without it too much of an issue and there is nothing to stop a narrow blank being held diagonally, which would also increase the usable machining capacity. I’ll draw the alteration tomorrow and see how the dimensions work out. Mentally, I had already committed to the router stops so I’ll add them tomorrow as well.

Cheers

Darren


tv1, mattbeels, Boo and 1 people liked
ReplyReplyQuote
darrenking
(@darrenking)
Customer
Luthier
Rep Points: 4205
Joined:2 years ago
Posts: 813
18/04/2021 5:44 pm

I’m guessing a bit more clearance may be a good idea.

OK, I’ll increase it to 60mm and if anyone finds that this it too high then they can always trim the rails down a little bit themselves. Sound like a plan?


tv1, mattbeels, Boo and 1 people liked
ReplyReplyQuote
mattbeels
(@mattbeels)
Customer
Luthier
Rep Points: 14673
Joined:7 months ago
Posts: 916
18/04/2021 6:10 pm

there is nothing to stop a narrow blank being held diagonally

I had thought of that after commenting @darrenking but wasn’t sure if it was a whack idea or not. So I guess it isn’t! 😆

Pratice on scrap...


Boo, tv1 and Russ liked
ReplyReplyQuote
tv1
 tv1
(@tv101)
Luthier
Rep Points: 17995
Joined:12 months ago
Posts: 2086
18/04/2021 6:41 pm

You already know what I think @darrenking!

It's another beautifully made piece of kit from the Bagpress workshop.

My existing set-up uses a 50mm rail height.  The only downside with making it taller is that, if you also need to flatten something thinner, then your router bit might not be long enough to reach.  I've never had a problem with 50mm being too low, but it has been borderline too high at times.

Stops to stop the sled going off the ends of the rails is a good call.  I usually clamp mine to a bench, and the clamps act as the stops, but having something built into the jig would be beneficial.



Too everyone looking at this - I had some hands-on time with it yesterday.  It's robust and plenty strong enough to hold a router.  The sled moves smoothly up and down the rails.  It's pure win.

Wealden Tools do the perfect surfacing bit to use with the jig;

https://www.wealdentool.com/acatalog/Surface-Trim.html

@darrenking; the diameter of ^^^that cutter is 52mm.  Would that fit through the slot in the sled?



Online guitar making courses – guitarmaking.co.uk


mattbeels, Boo and Russ liked
ReplyReplyQuote
darrenking
(@darrenking)
Customer
Luthier
Rep Points: 4205
Joined:2 years ago
Posts: 813
18/04/2021 6:57 pm

that cutter is 52mm

This is a great cutter and I love Wealden products, and I think they offer the best value for money of any UK brand. My only concern is that this is quite a big cutter to be using in what is essentially a hand routing jig. Especially if someone is new(ish) to using a hand router I would probably recommend starting with smaller diameter cutter, maybe 25-30mm max as this will be more forgiving in case of an ‘incident’. A 52mm cutter will fit through the aperture in the jig though, so if you are happy to use it then go for it, just don’t take too deep a cut per pass especially early on, when the surface may still be fairly and the depth of cut not so easy to assess.

Smaller diameter cutters (15-18mm), such as those used for trimming kitchen worktops, are pretty cheap to buy and are significantly longer, so these are probably a good option for machining thinner materials even if it means having to make more passes.


mattbeels, tv1, Boo and 1 people liked
ReplyReplyQuote
Russ
 Russ
(@russ)
Luthier
Rep Points: 15091
Joined:11 months ago
Posts: 1161
18/04/2021 7:14 pm

My existing set-up uses a 50mm rail height.  The only downside with making it taller is that, if you also need to flatten something thinner, then your router bit might not be long enough to reach

A very good point @tv101. My idea of 70mm is ridiculous @darrenking. 🤔🙄

🙂🎶🎸🙏

🗝️ "Life's what you make it"🗝️


mattbeels, tv1 and Boo liked
ReplyReplyQuote
darrenking
(@darrenking)
Customer
Luthier
Rep Points: 4205
Joined:2 years ago
Posts: 813
18/04/2021 7:22 pm

So should I go for a compromise of 55mm as standard to accommodate neck blanks?


Blake, Russ, mattbeels and 2 people liked
ReplyReplyQuote
Boo
 Boo
(@boo)
Customer
Luthier
Rep Points: 20922
Joined:3 years ago
Posts: 2477
18/04/2021 7:23 pm

It all looks good to me @darrenking it will be good to finally have a purpose made, flat surface routing jig. I always have confidence in you creations.

Oh I got the buffing mops on Friday by the way (I sent you a text). Thanks very much.

Online guitar making courses – guitarmaking.co.uk


Russ, mattbeels and tv1 liked
ReplyReplyQuote
darrenking
(@darrenking)
Customer
Luthier
Rep Points: 4205
Joined:2 years ago
Posts: 813
18/04/2021 7:25 pm

The only downside with making it taller

That said, it is easier to add a riser layer to the bed of the jig to bring thin material closer to the cutter than it is to raise the height of the rails.


Russ, mattbeels, tv1 and 1 people liked
ReplyReplyQuote
darrenking
(@darrenking)
Customer
Luthier
Rep Points: 4205
Joined:2 years ago
Posts: 813
18/04/2021 7:27 pm

Oh I got the buffing mops on Friday by the way (I sent you a text)

Hi Boo, no problem and I meant to respond. It’s just been a busy weekend, I’ve had sorts of odd people drop in!!😂😂😂


Russ, mattbeels, tv1 and 1 people liked
ReplyReplyQuote
Boo
 Boo
(@boo)
Customer
Luthier
Rep Points: 20922
Joined:3 years ago
Posts: 2477
18/04/2021 7:29 pm

no problem and I meant to respond. It’s just been a busy weekend, I’ve had sorts of odd people drop in!!😂😂😂

Yeah I gathered you’ve had a busy one. Yeah there are all kinds of strange characters out there, be careful. 🤣🤣🤣🤣

Online guitar making courses – guitarmaking.co.uk


Russ, mattbeels and tv1 liked
ReplyReplyQuote
tv1
 tv1
(@tv101)
Luthier
Rep Points: 17995
Joined:12 months ago
Posts: 2086
18/04/2021 7:59 pm

I’ve had sorts of odd people drop in!!

You mean you had *other* visitors too???

Online guitar making courses – guitarmaking.co.uk


Russ, mattbeels and Boo liked
