BYOEG Black Stealth

309 Posts
15 Users
3456 Reactions
16.3 K Views
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

Jumbo and medium jumbo Evo Gold frets. 🤘😁🤘🎸

62C4C5D3 610F 4184 B7C5 BD763C9E35C4
ECC29055 2EFE 4210 BFD2 D6A994876D16
87047E82 291E 46EC 9DA2 1593CF741371

Make guitars, not war 🌍✌️🎸



cheesewhisk, mattbeels, Clinton and 11 people reacted
ReplyQuote
Robin
(@robin)
Illustrious Member Customer
Luthier
Rep Points: 17150
Joined: 5 years ago
Posts: 1087


Looking good @boo  Do you buy your fretwire pre rolled and where do you buy it from. I'm planning build #003 now while waiting for lacquer to harden.



tv1, cheesewhisk, mattbeels and 9 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558


You're a little Industry @boo

🙂🎶🙏🎸

🗝️ "Life's what you make it"🗝️



tv1, cheesewhisk, mattbeels and 7 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

Do you buy your fretwire pre rolled and where do you buy it from. I'm planning build #003 now while waiting for lacquer to harden.

@robin Thanks Robin. Yes I normally buy it in coils rather than in straight lengths (although I do buy straight lengths sometimes). One good place I get it from is Tone Tech.

https://tonetechluthiersupplies.co.uk/guitar-fret-wire.html

Make guitars, not war 🌍✌️🎸



tv1, cheesewhisk, mattbeels and 9 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

You're a little Industry

@russ I’ve normally got about 3 or 4 builds on the go at the same time. I have 4 at the moment, including a cigar box guitar build. Oh I’ve got that bass to finish off too. I have more planned too. Love it. 🤘😜🤘🎸

Make guitars, not war 🌍✌️🎸



tv1, cheesewhisk, mattbeels and 9 people reacted
ReplyQuote
Robin
(@robin)
Illustrious Member Customer
Luthier
Rep Points: 17150
Joined: 5 years ago
Posts: 1087


@boo

Yes I normally buy it in coils rather than in straight lengths (although I do buy straight lengths sometimes). One good place I get it from is Tone Tec

Thanks for that, I'll have a look. I bought my last lot from Northwest Guitars and it came in 250mm straight lengths.



tv1, cheesewhisk, mattbeels and 9 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

Thanks for that, I'll have a look. I bought my last lot from Northwest Guitars and it came in 250mm straight lengths.

@robin It’s cheaper to buy in straight lengths but it’s easier in coils, it’s ready to use. Just cut to length for each fret slot and install. Done. 👍

Make guitars, not war 🌍✌️🎸



cheesewhisk, mattbeels, Koendb and 7 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

Installed the medium jumbo frets into this build. I’ll keep the jumbo ones for mine.

C1E348E2 52FE 421D A7D3 1AFEAA7D0D81

Make guitars, not war 🌍✌️🎸



cheesewhisk, mattbeels, Koendb and 7 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

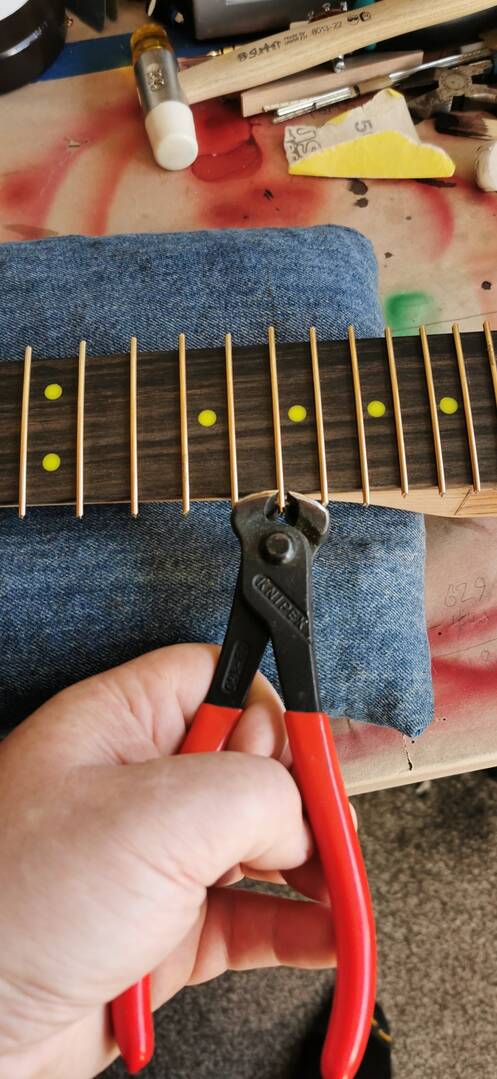

Snipped off the excess.

4CC37444 08E0 4EE4 8DC7 FA1C0026B2E1
232054A7 9527 4AD5 B2D4 E6953744D2E9
27384482 F69E 4405 8617 12C281EFADAD
995717D5 272B 41F1 A34B EB028D1DA2C9
D524DCBA B932 4861 BD63 225471CB90A0
0A331430 C90A 4693 AE06 157A9ADE234F

Make guitars, not war 🌍✌️🎸



tv1, cheesewhisk, mattbeels and 9 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

Filed them flush with the fretboard.

06281D82 6117 41C3 8160 27C06AB8A9C4
E709BFF3 2932 40F1 8F8F 034330223404
2D21FE75 B7E5 4856 9B1A 003E585A2655

Make guitars, not war 🌍✌️🎸



tv1, cheesewhisk, mattbeels and 9 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

Filed the bevel onto them.

03A9AECB B0DA 47F2 AC4A 85FD888B99A6
0B7CFD60 A291 4E04 B364 7917A9A92E38
A3D0A47F 3386 4BC5 B005 0AC29869280A

Make guitars, not war 🌍✌️🎸



cheesewhisk, mattbeels, Koendb and 7 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

Time for a bit of CA glue and accelerator, as well as keeping a bottle of solvent handy (with lid removed), just in case.

0C2399F2 C062 4BBA B97B BFDD52A66FEA

Make guitars, not war 🌍✌️🎸



cheesewhisk, mattbeels, Koendb and 7 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

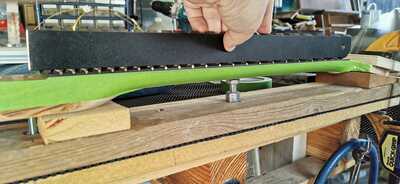

Into the fret levelling jig and tape up the fretboard.

878DD177 3580 4824 85E2 20F8CF1B3F1D
CD6DF7E8 61D6 4085 9B0E 866BBBB07AD0
4DB6EB54 30E4 4B4E B95C 76EAFEC87995

Make guitars, not war 🌍✌️🎸



cheesewhisk, mattbeels, mark bailey and 11 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558


Coming along nicely @boo

🙂🎸🎶🙏

🗝️ "Life's what you make it"🗝️



tv1, cheesewhisk, mattbeels and 7 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

Coming along nicely

@russ I think once you get going, you will have many guitar builds coming nicely along. There’s no better feeling Russ. Apart from maybe……. a few things but not much…… 🤘😜🤘🎸

Make guitars, not war 🌍✌️🎸



tv1, cheesewhisk, mattbeels and 11 people reacted
ReplyQuote
mattbeels
(@mattbeels)
Illustrious Member
Luthier
Rep Points: 19074
Joined: 4 years ago
Posts: 1040


Great work @boo! How do you like the EVO Gold wire?

Practice on scrap...



tv1, cheesewhisk, Boo and 7 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

How do you like the EVO Gold wire?

@mattbeels I love this EVO Gold fret wire. It’s great to work with and it looks great when polished up, as well as the colour. It’s becoming my goto wire, in fact I’ve just bought some more.

Make guitars, not war 🌍✌️🎸



cheesewhisk, Russ, mattbeels and 5 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

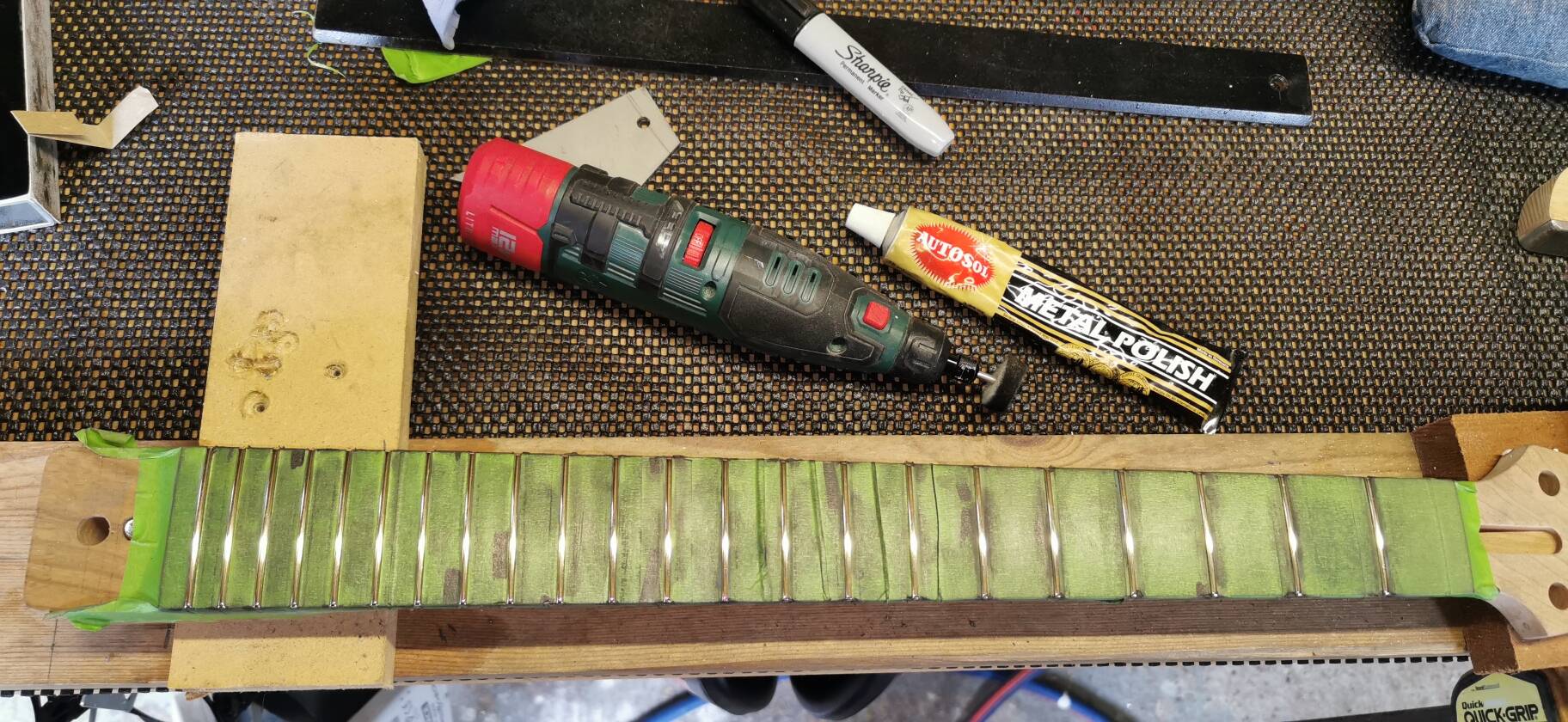

Felt level, crown and polish.

070E02C1 168C 42B5 AB65 62AF19CC4259
08399C80 A44B 4BEA B875 6C0404316FE8
A39A3279 D55A 49AE ACE6 227BDA4AABE9
AE31F3F5 4EC8 4F67 9D6C 3C923D611B8A
179AA9DB CDF7 46E1 B9F7 3A658016A81A
1D2FEFEB 8184 46FD 9599 832BFC42B8C4

Make guitars, not war 🌍✌️🎸



tv1, mattbeels, cheesewhisk and 11 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

Unmask and it’s looking good. I love this Evo gold fret wire.

53BE7D16 BF63 4A0B 9EDD 6BF339D5960C

Make guitars, not war 🌍✌️🎸



tv1, cheesewhisk, mattbeels and 13 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

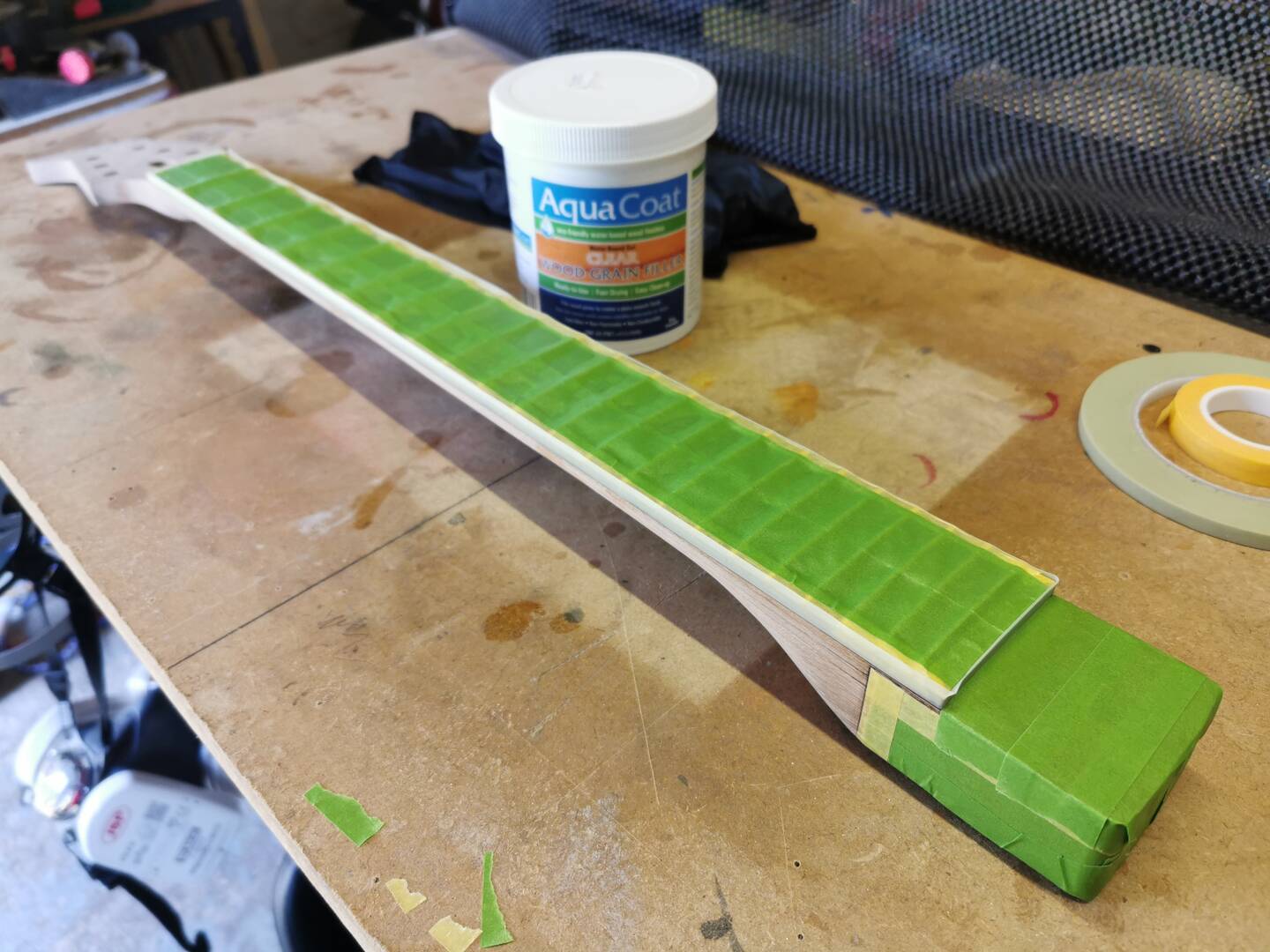

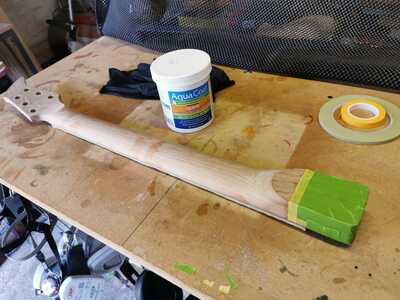

Moved onto some grain filling.

ACD7A573 C910 49D3 97D4 B84C55EBB14B
568307F6 4783 459E 97E3 65B4B902C751
EE704D1D A260 4287 BAAF D60AC43E52F0
3F873CD5 B95E 4F9E 80C3 FFAA4C0A29F4
BFB064E7 3946 414D ACB5 DB736A4831C3
3EFE78F1 A21E 4DDE A0D5 F9FBF14343ED
F2B09BCF D016 457D BAB2 DF2584153BE3
C131F159 223F 4805 83CF 949314373A43
B8A20005 1FF8 4877 A366 3C0F1FA57874
F1E67FDD 3A44 46C4 AB5D D4CDB4F9E1F9
8EE1BB2D C3D9 4207 8CDB DBA32071DBAD
6975B13D 68DB 4DF2 8218 2CDC8F572E74

Make guitars, not war 🌍✌️🎸



tv1, cheesewhisk, mattbeels and 13 people reacted
ReplyQuote
