Last week I disclosed that "part 1 is in place".

Today, I can announce that part 2 is now also ready and able.

20210417 163655

 Thanks @darrenking for a great couple of hours today and for the Bagpress bits.  That was seriously my first trip *anywhere* (other than the real necessities) in more than a year.



Note to readers - there's another Bagpress product announcement due shortly.  Trust me, and just get your orders in now, you'll want one.

😉

Online guitar making courses – guitarmaking.co.uk


Koendb, Boo, mattbeels and 1 people liked
Russ
 Russ
(@russ)
Luthier
Rep Points: 15091
Joined:11 months ago
Posts: 1161
17/04/2021 5:46 pm

Note to readers - there's another Bagpress product announcement due shortly.  Trust me, and just get your orders in now, you'll want one.

Oooo. @tv101. What could it be?

🙏🎸🎶🙂

🗝️ "Life's what you make it"🗝️


Koendb, Boo, tv1 and 1 people liked
ReplyReplyQuote
mattbeels
(@mattbeels)
Customer
Luthier
Rep Points: 14673
Joined:7 months ago
Posts: 916
17/04/2021 6:11 pm

@tv101

Hah! I just knew you were gonna get a Bagpress. Have fun!

Pratice on scrap...


Koendb, Boo, Russ and 1 people liked
ReplyReplyQuote
tv1
 tv1
(@tv101)
Luthier
Rep Points: 17995
Joined:12 months ago
Posts: 2086
17/04/2021 6:15 pm

What could it be?

Order one, find out @russ 😉

Its something else of great use in guitar building (and other less important woodworkery, potentially!), built to the usual high Bagpress standards @darrenking.

Online guitar making courses – guitarmaking.co.uk


Koendb, mattbeels, Boo and 1 people liked
ReplyReplyQuote
tv1
 tv1
(@tv101)
Luthier
Rep Points: 17995
Joined:12 months ago
Posts: 2086
17/04/2021 6:16 pm

Have fun!

The summer is ahead, I have woods, I have tools, I have time!

Fun will be had @mattbeels.  Lots of fun ...

Online guitar making courses – guitarmaking.co.uk


Koendb, Boo, Russ and 1 people liked
ReplyReplyQuote
darrenking
(@darrenking)
Customer
Luthier
Rep Points: 4205
Joined:2 years ago
Posts: 813
17/04/2021 11:55 pm

another Bagpress product announcement due shortly

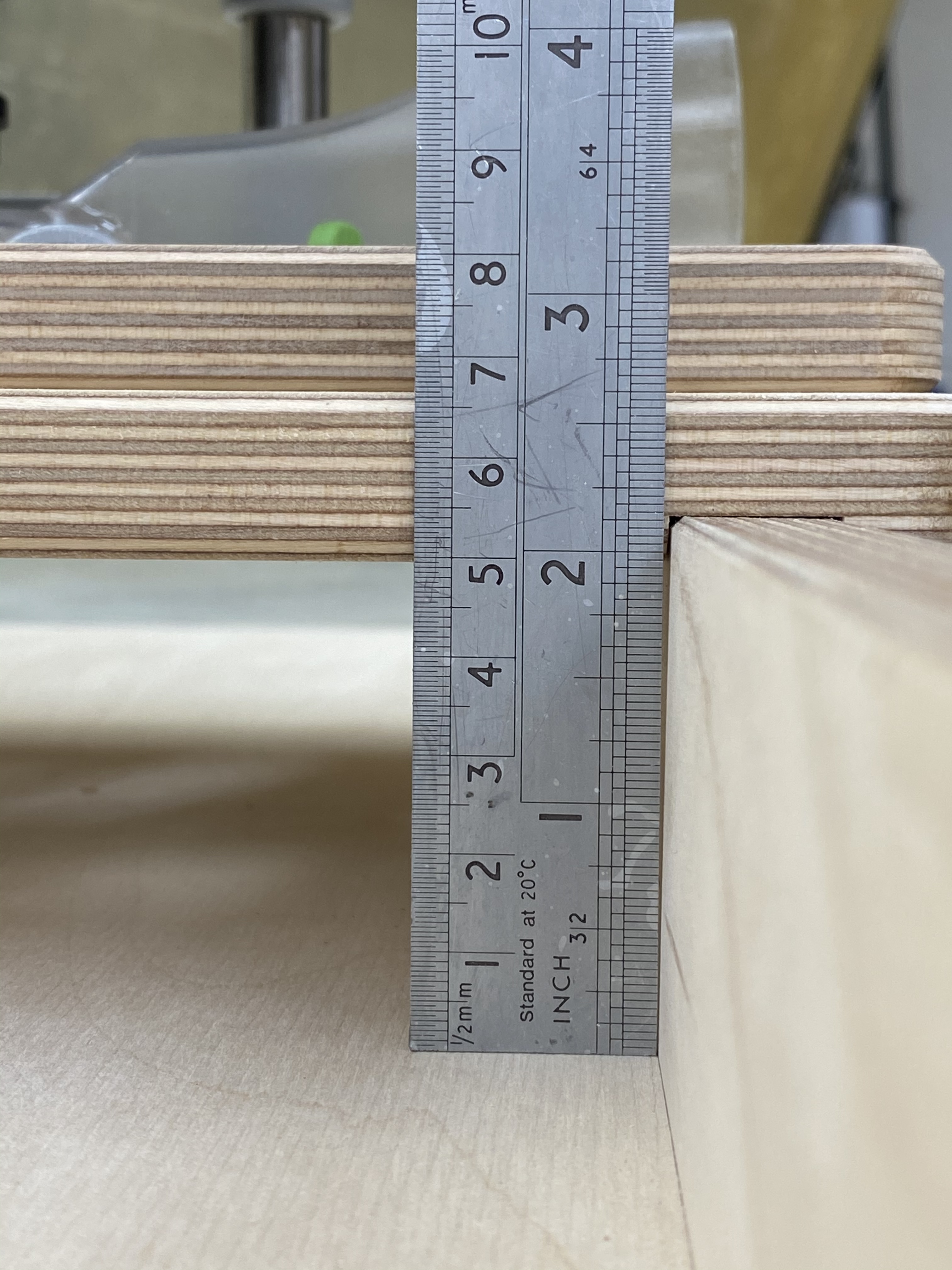

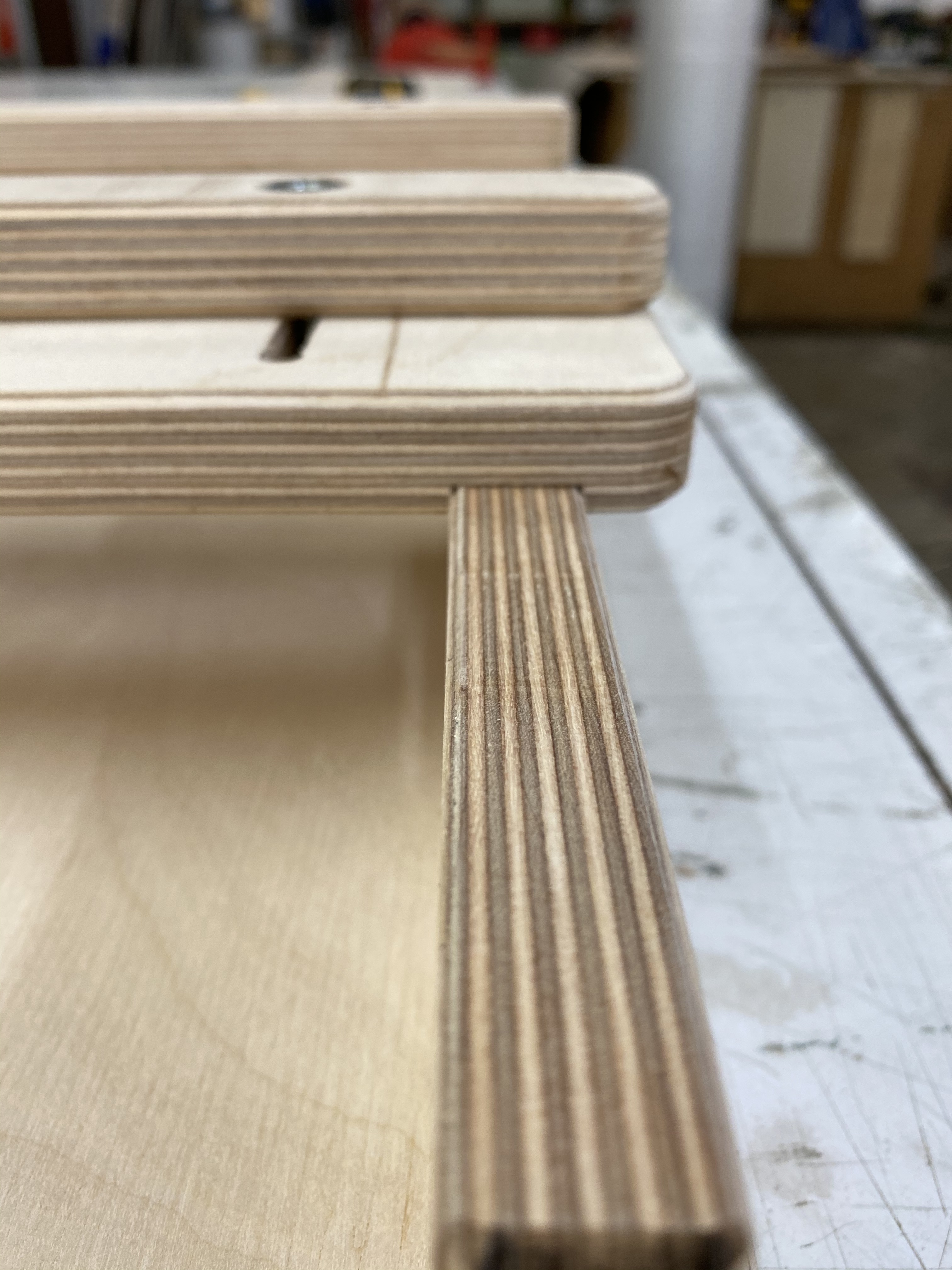

Just a couple of teasers!

E92009A4 CB79 4F64 A998 77608737CB0F
12ACE9CC 2230 4ACA 85F1 416F61A310F9

Darren


Boo, tv1, Rocknroller912 and 1 people liked
ReplyReplyQuote
Rocknroller912
(@rocknroller912)
Luthier
Rep Points: 3622
Joined:9 months ago
Posts: 532
18/04/2021 12:55 am

@darrenking

Could it be a surfacing jig for routers, for paupers who don’t have a planer or drum sander ?

Don’t call us we’ll call you


mattbeels, Russ, Boo and 1 people liked
ReplyReplyQuote
darrenking
(@darrenking)
Customer
Luthier
Rep Points: 4205
Joined:2 years ago
Posts: 813
18/04/2021 1:06 am

Now that would be telling!!
Hope to update you tomorrow.

Darren


mattbeels, Russ, Boo and 2 people liked
ReplyReplyQuote
Bill Flude
(@frocesterbill)
Customer
Luthier
Rep Points: 3163
Joined:2 years ago
Posts: 578
18/04/2021 7:39 am

Bagpress going into decking?  🤣

Measure once........
Measure again.........
Sod it - make tea!


mattbeels, Russ, Boo and 1 people liked
ReplyReplyQuote
Russ
 Russ
(@russ)
Luthier
Rep Points: 15091
Joined:11 months ago
Posts: 1161
18/04/2021 12:13 pm

Just a couple of teasers!

@darrenking

Hurry Darren. I need to get out of these suspenders. 😂😉

🙂🎶🎸🙏

🗝️ "Life's what you make it"🗝️


mattbeels, tv1 and Boo liked
ReplyReplyQuote
darrenking
(@darrenking)
Customer
Luthier
Rep Points: 4205
Joined:2 years ago
Posts: 813
18/04/2021 4:47 pm

I need to get out of these suspenders

And I need to get that image out of my head!! 🤣 🤣 🤣

Ok, here we go. There may be a couple of minor changes for the production version but here is the Bagpress Flattening Jig prototype. Very happy to hear your opinions, comments and suggestions.

The prototype has a clearance of 50mm from the bed to the underside of the slide (is this enough?) and will take material up to about 380mm wide x about 560mm long. It doesn't currently have front and back stops for the router travel but if you guys think this is important then I can add these very easily, it will just make the slide section a bit wider. The side guides for the router are adjustable and should accommodate most routers, large or small.

The whole jig is currently constructed out of 18mm birch ply but using moisture resistant MDF for the base would reduce the costs a little if necessary and it wouldn't affect the operation or accuracy of the jig. I'll work out the price once I've had your feed back and incorporated any suggested alterations.

The top of the rails have been trimmed on my veneer saw which produces a very flat and accurate surface for the 5mm deep channels in the slider to run on. I don't think there is a need for any anti-friction material on the slider as a little bit of wax rubbed on the top of the rails produces a very smooth action.

The base is pre-drilled with multiple screw holes to allow for the blank to be securely held in the optimum position from the underside, and there are four holes in the corners to allow the jig itself to be screwed to a bench or a clamped baseboard.

IMG 2422
IMG 2423
IMG 2426
IMG 2431
IMG 2430
IMG 2429
IMG 2425
IMG 2427
IMG 2428
IMG 2432
Screen Shot 2021 04 18 at 16.32.23

What do you all think?

Cheers

Darren
