Great work as always @boo, that’s pretty black!

I noticed that you have one of the newer THR 10’s, is that a II or III and how do you like it? I’ve had the 10X for years and I love it.

Practice on scrap...



tv1, Boo, Russ and 5 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

I noticed that you have one of the newer THR 10’s, is that a II or III and how do you like it? I’ve had the 10X for years and I love it.

@mattbeels It’s a THR30II Wireless and it’s awesome. 🤘😁🤘🎸

I originally looked at buying one of the previous models as they were cheaper but this one combined all of feature of all three of them into one package. It has the Modern, Classic and Boutique settings from those previous amps at the flick of a switch and settings for Bass, Acoustic or Flat guitar. It has 5 channels for each of them, Clean, Crunch, Lead, Hi Gain and Special. I have all the usual dials too, Gain, Bass, Middle, Treble, and Master. A few basic effects and reverb as well as Bluetooth connectivity for external devices, with a separate volume for my guitar and the connected device levels. So if I’m using a backing track from my iPad or I want to play along with a song, I can get the volume balance level. It has built in rechargeable battery and I have option to charge a wireless guitar to amp thingy if so be. It has an app so I can access advanced settings and download settings from a vast online library. It has a headphone Jack socket, line outs and the usb allows for recording onto a DAW on external devices/computers etc.
It sounds superb for a little tabletop digital amp, it sounds so valve-like, truly amazing. I’ve only used it as a basic amp so far, I have yet to explore the advanced stuff. I’m only a bedroom player these days so it’s absolutely ideal for that, great tones. I’ve I had this as a teenager, I would have been the happiest kid alive.

26EDEDAB 41CF 43CA ACAE B58BB9576289
1CD370AC 0866 4581 A94F 8B64FCBF7706
D66F6DB6 843B 4FF2 82A2 47FCD9766E03
76AC1EA5 5CC9 4EBD B155 39ACA011C948
C0A44531 6F99 42CC BCBA 1030D92AD834
144C3E25 B1AE 4D89 AC1B 40FB5F4F62BD
AE957612 44AE 4124 981A 7B666A48F3FE

Make guitars, not war 🌍✌️🎸



Russ, mattbeels, Robin and 3 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

@mattbeels I’ve also bought a Positive Grid Spark that I haven’t used at all yet. I got it out the box when it arrived and put it straight on a shelf. I got the Yamaha at the same time and that has just been easier to use on a daily basis with wonderful tones. The Spark is more involved in terms of using iPad etc to control it and I just haven’t had the time or inclination to learn how to use it yet. It’s just gathering dust as you can see. 😢😭 I’ll get around to it one day.

6967E9B6 CAAA 4290 B45B 854DBCA74704
5FC40A04 81E2 4E1F A56E 51FB3D3CE999
D1E91020 95D9 4020 903D 1295F362E8DA

Make guitars, not war 🌍✌️🎸



Tej, Russ, mattbeels and 5 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

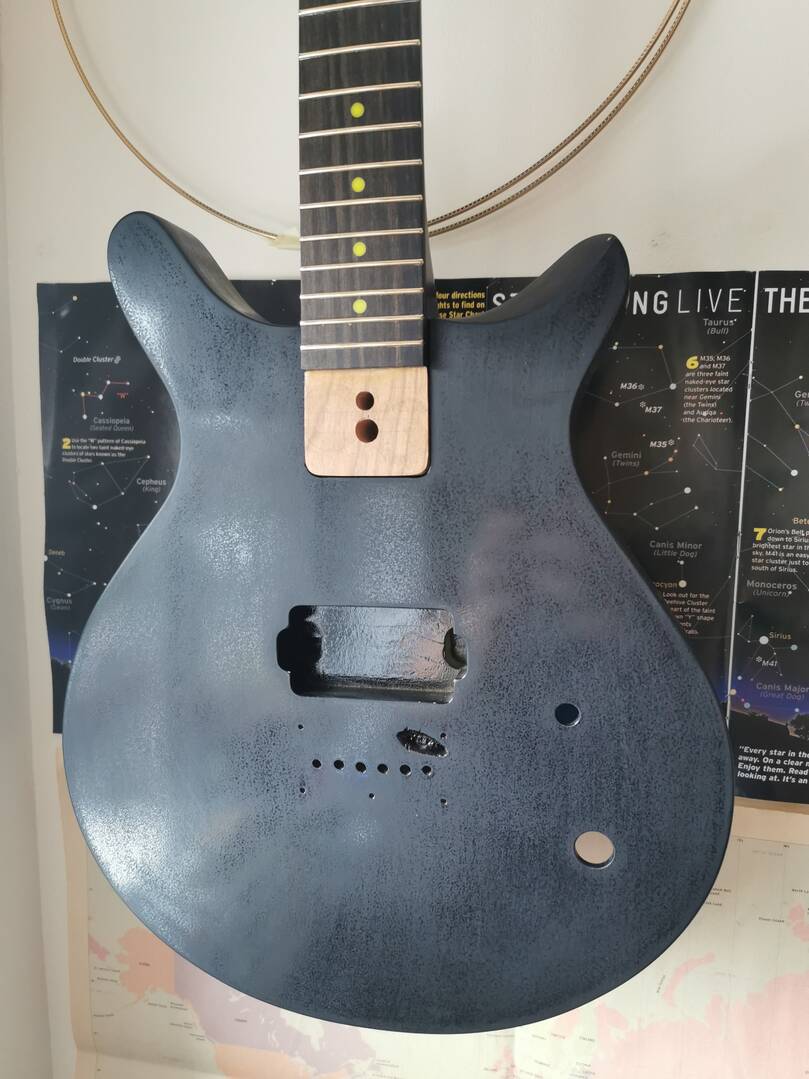

OK, back to the blackness. 🖤

Unclamped this morning. I’m going to leave it for another day for the glue to cure a bit more before I get the router on it again, just in case.
It’s looking a bit rough at the moment isn’t it? 🤣 It’s just where I want it. 🤘🖤🤘🎸

9AF9F800 4012 44BE ADE0 D5362C0BF3E4
596DDAF1 362D 4F6B A40D CE2AFE967E65
64E0DFEE 0B72 4843 912B EED3B7822ADA
03C5B69F 60AD 4C2D 85BD 7B951DAE643F
FBCE51FC 47CB 4635 B019 64BDFF5D34B5
390105B6 9106 4841 A1B7 7A35CCBCA1EC

Make guitars, not war 🌍✌️🎸



Tej, Russ, mattbeels and 5 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

Holes plugged and glued.

DE547E54 2621 4163 A422 939324462C28
83765DA3 FF86 4BAB 821F 5095499EECD3
C6C8A86C FA6E 46FB B3AF 2D4A59EDF911
AE352ACE BD2D 4E34 9076 7A02D4C783D9
08BBBA74 24AB 4293 A6DF 6EC971828B18

Make guitars, not war 🌍✌️🎸



Tej, Koendb, Russ and 7 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

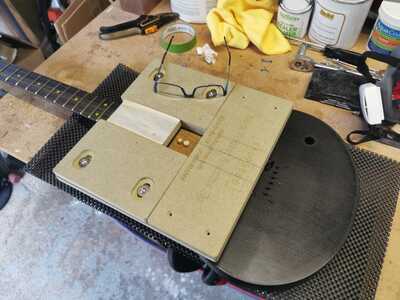

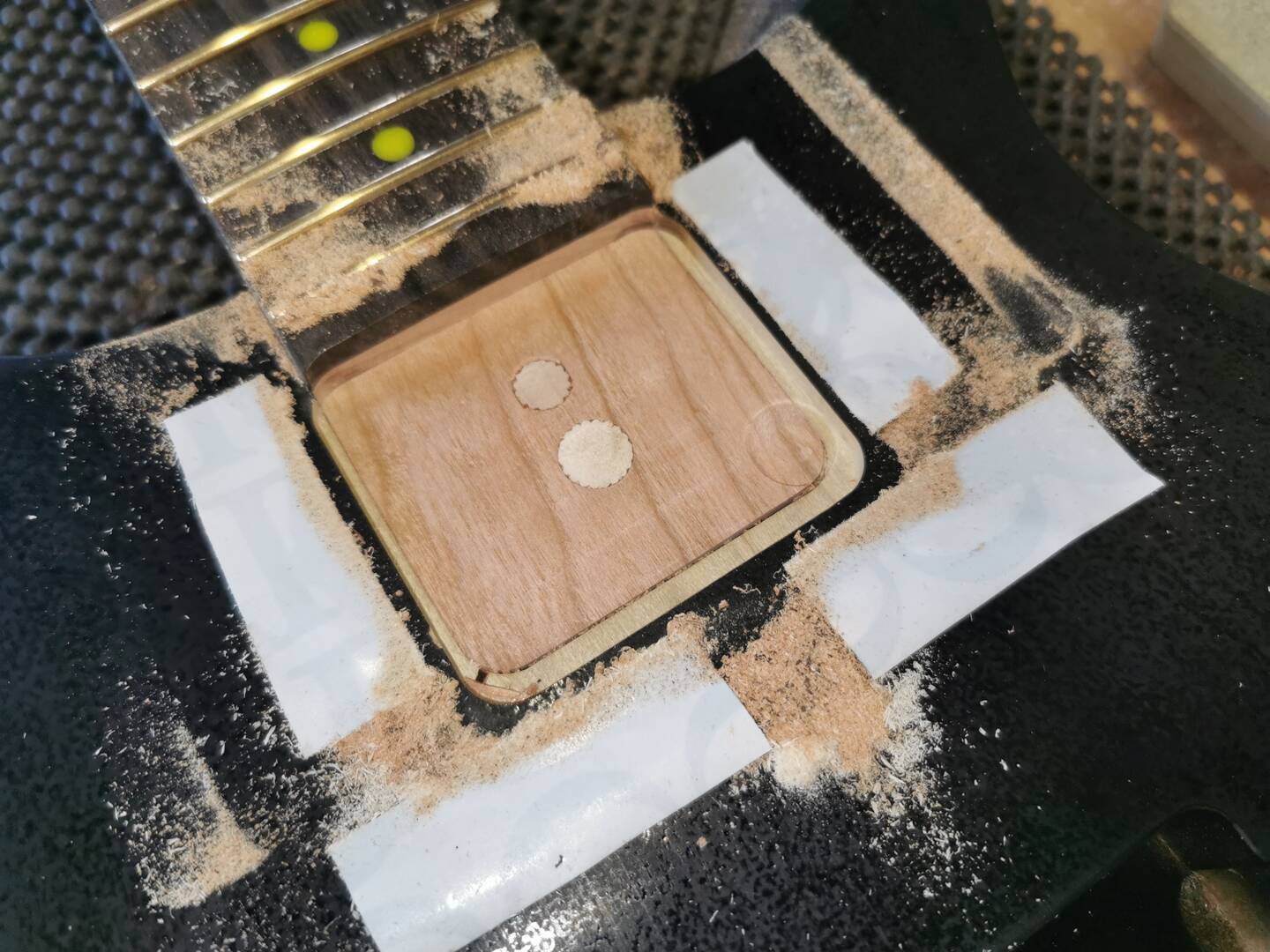

A spot of routing. The Bagpress routing jig came in handy for this job. I had to add an extra piece of wood into the jig so the cutter bearing could ride along the bottom of the fretboard. It’s all come out nice and neat, I just need to fill and prime it now and a lot of sanding and prepping.

28867B5A 3EDF 4C01 9895 EB5FFBC3FB3B
7122FFAD 4351 42AC 8147 48EB1B400912
61587BA8 A443 40D4 880F 9E2A452CE39D
EA8E0153 BF93 4907 B262 21F1E1284035
96A413FA 74CB 4423 9653 F89B3DD06F38
3A492CD0 8529 4109 AD66 E94F0B7DEB5B
E51D65C3 516F 4CB6 A59B 151B58446E6A

Make guitars, not war 🌍✌️🎸



Tej, mattbeels, Bpower and 9 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558


Very neat @boo. Looking forward to seeing how this turns out.

🙏🎶🎸🙂

🗝️ "Life's what you make it"🗝️



tv1, Tej, mattbeels and 9 people reacted
ReplyQuote
Bpower
(@bpower)
Noble Member
Luthier
Rep Points: 3862
Joined: 4 years ago
Posts: 299


very cool @boo. You've got all the bagpress toys. I think I need to befriend him. 🙂 I've only got one of his toys. Maybe in time. The guitar is looking awesome.... for an electric. he he he.



tv1, Tej, mattbeels and 11 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

You've got all the bagpress toys. I think I need to befriend him. 🙂

@bpower He is a very nice chap, I’m sure he will be glad to help you out. @darrenking

The guitar is looking awesome.... for an electric. he he he.

Thanks very much. It’s getting there, this is the last major job on it, apart from the final coats of paint.

Make guitars, not war 🌍✌️🎸



Tej, mattbeels, Robin and 9 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

Time for a little filler. I’m using a two component, lightweight filler that can be sanded within a few minutes of curing, which is about 10 mins. I first drilled a load of holes, only about 5mm deep, at various angles. This is so that when I press the filler in, those holes will be filled and there will be no chance of it falling out in time. This stuff sets rock hard and it’s only like putting a wooden fillet over the joint, but this way is more easily sanded and can be painted over. It will take several applications to build it up and lots of sanding to get it level. After it’s right, I’ll clean everything up and mask up again so I can spray some high build primer over that localised area (several coats). That will then be sanded perfectly flat so I can clean, mask up yet again and give the body it’s final coats of black and matt clear lacquer.
It’s a lot of work for such a small area but that’s what I need to do on this particular job. I’ll be doing all of this by hand, I’m not using my Mirka sander as it’s too near the fretboard and the last thing I want to do is damage that at this stage of the game.

0262CDFC FE4E 4A78 91A7 E4C6DA380E24
98A9410C 920E 4F5E 9E30 A205DCE5F274
E5374F76 C831 4237 8834 05F1A10C0327
6634792E 570E 42A1 A2F0 CEF721732F9B
C0293845 58FE 4C0D 9422 31068F28A1F8
9B61155B 40E2 41AF B14A F9810A3DA67B
2D8FD836 559E 430C B58E BC7631E68D1A

Make guitars, not war 🌍✌️🎸



Tej, Koendb, mattbeels and 9 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

I applied a second coat if filler (after sanding the first one back a bit) and sanded it fairly flat. I’ll probably get it spot on with the next filler coat.

6C9CFFE8 C19C 4500 B970 3BA02F0C0529
68E4841D 6B16 4301 827F 2AA07C641551
7392F3B6 0837 4F01 8B53 9A154DDD7DAF
292BC2A5 1B9B 4460 AB1E EB01910B9498
C5692A15 0D11 4850 A5BE E567F40DFB60
987F88A3 C663 40FD 930F 81D7C45B819F

Make guitars, not war 🌍✌️🎸



tv1, Tej, Koendb and 13 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

It’s looking a bit better now, I’ve feathered out the paint around the repair and I just need to skim fill those tiny pinholes (final filler coat).

E9601E86 BF20 424E 9819 7D747E6C7254
71B2E147 5BB3 4E48 8692 8625EFB21350
D78776F9 AAC0 44EB A0C0 14E8D69680CE

Make guitars, not war 🌍✌️🎸



Tej, Koendb, Robin and 9 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

This is the skim fill for those pinholes. I just need to sand it back with some 240 and then it’s time for some high build primer.

EE2B77B6 8BD0 4AEE 9702 A25EC0BBCD47

Make guitars, not war 🌍✌️🎸



Tej, Koendb, Robin and 9 people reacted
ReplyQuote
mattbeels
(@mattbeels)
Illustrious Member
Luthier
Rep Points: 19074
Joined: 4 years ago
Posts: 1040


That’s a lot of work @boo!

Practice on scrap...



tv1, Tej, Koendb and 9 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

That’s a lot of work

@mattbeels It is indeed but it’s what I need to do. Next time I will glue the neck in and then put a cap over the whole body top to cover the joint. They are both challenging in their own ways. It’s all good fun though. 😁

Make guitars, not war 🌍✌️🎸



Tej, Russ, Koendb and 7 people reacted
ReplyQuote
mattbeels
(@mattbeels)
Illustrious Member
Luthier
Rep Points: 19074
Joined: 4 years ago
Posts: 1040


Next time I will glue the neck in and then put a cap over the whole body top to cover the joint.

“It is the only way…”

Yeah, if you don’t want a pickguard or a neck pickup I think that’s the way to go.

Practice on scrap...



tv1, Tej, Russ and 9 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

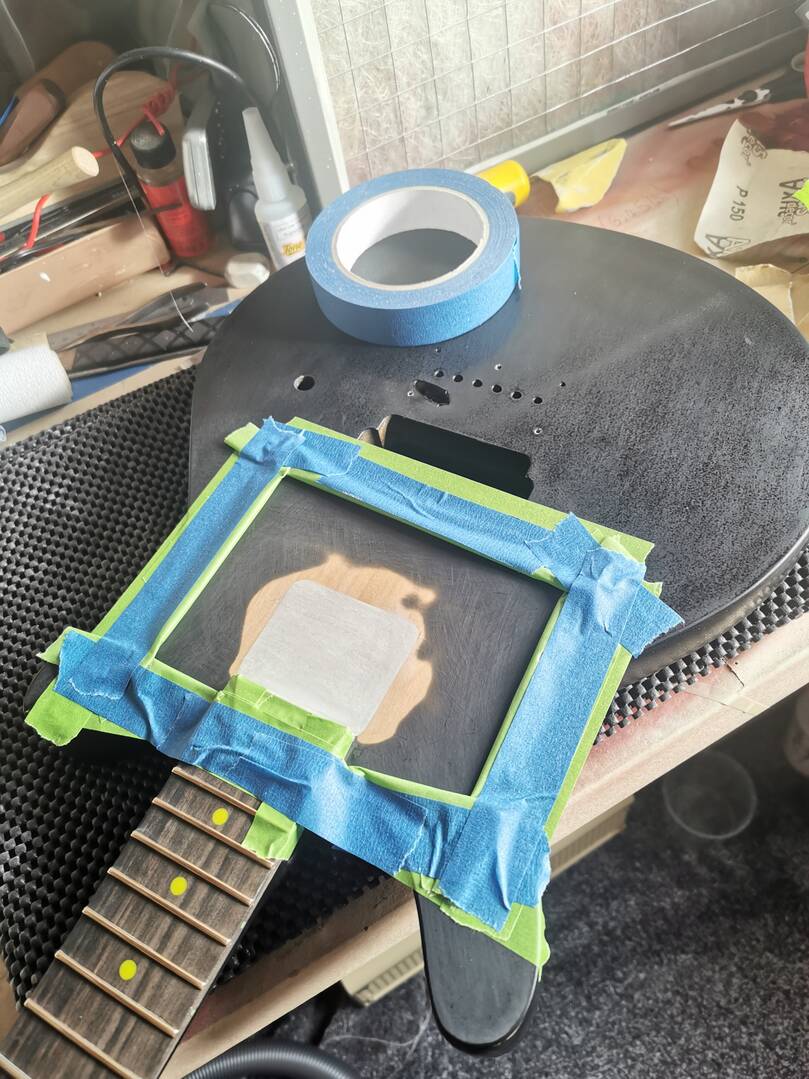

A bit of fancy back-masking and it’s nearly ready for primer. I’ll just mask off the rest of the guitar properly first before a put paint in my gun.

2882835C 95FF 43D1 8FFD C1E82469EA04
556CE86D 08A2 4DE1 88FC FB66DFEB98D6
1D63AE8C E3C0 44AE A6B9 56DDAD6881BF
D1B94677 EB9E 4DC3 A236 D19AA0827397

Make guitars, not war 🌍✌️🎸



tv1, mattbeels, Koendb and 11 people reacted
ReplyQuote
Russ
 Russ
(@russ)
Illustrious Member Customer
Luthier
Rep Points: 29330
Joined: 5 years ago
Posts: 2558


Where do you buy your masking tape from @boo

🎶🎸🙏🙂

🗝️ "Life's what you make it"🗝️



tv1, mattbeels, Koendb and 9 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

Where do you buy your masking tape from @boo

@russ Masking tape shop. 🤣

Make guitars, not war 🌍✌️🎸



mattbeels, Koendb, Tej and 7 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 35195
Joined: 6 years ago
Posts: 3873
Topic starter

@russ I use Frog Tape these days. It’s quite expensive but it’s amazing quality and there are different types for different situations. Cheaper brands are just not cutting it for me and a lot leave a sticky residue when taken off. It’s not a major problem, it usually wipes off with some spirit wipe but it’s another step to do that you shouldn’t really have to do. As a general rule, masking tape shouldn’t be left of any surface for too long as it causes the glue to harden and can be very difficult to get off.
Frog Tape though just works how all masking tape is supposed to and they do recognise that there are different situations for different painters. They day a standard one, a low tack one etc….. Again, it isn’t cheap but I like it. There may be other tapes out there that are just as good and maybe cheaper but I haven’t found them yet.

https://www.frogtape.co.uk/



D123EDBF 6EA4 428D A672 B2BD17B7A4EB

Make guitars, not war 🌍✌️🎸



tv1, mattbeels, Koendb and 7 people reacted
ReplyQuote
