first scratch build : a neck through 12 string semi hollow telecaster style guitar

62 Posts
12 Users
354 Reactions
2,172 Views
tyreman
(@tyreman)
Reputable Member
Technician
Rep Points: 516
Joined: 3 years ago
Posts: 101
Topic starter
top finished + glue up 3
top finished + glue up 4
top finished + glue up 5
top finished + glue up 6
top finished + glue up 7
top finished + glue up 1

 the top is glued on now, I made the f hole thinner so that it looks better from the front, and coloured in the middle section with pencil crayons to give it a similar look to the final guitar.

This post was modified 10 months ago by tyreman


Koendb, tv1, Boo and 3 people reacted
ReplyQuote
tyreman
(@tyreman)
Reputable Member
Technician
Rep Points: 516
Joined: 3 years ago
Posts: 101
Topic starter

here's another update:

- routed the pickup cavities

-routed the back panel slot

the top is very slightly off from the centreline not by much but enough to annoy me so for the real one I'll use screws to line it up before gluing it down, now there are only a few jobs left.

pickup and backplate routed 1
pickup and backplate routed 3
pickup and backplate routed 4
pickup and backplate routed 5
pickup and backplate routed 6
pickup and backplate routed 2
pickup and backplate routed 7
pickup and backplate routed 8





Koendb, tv1, Boo and 4 people reacted
ReplyQuote
tyreman
(@tyreman)
Reputable Member
Technician
Rep Points: 516
Joined: 3 years ago
Posts: 101
Topic starter

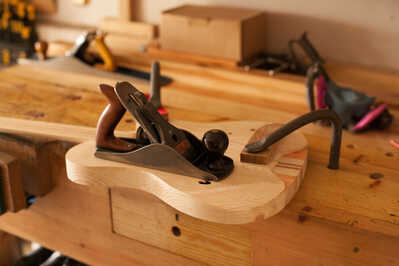

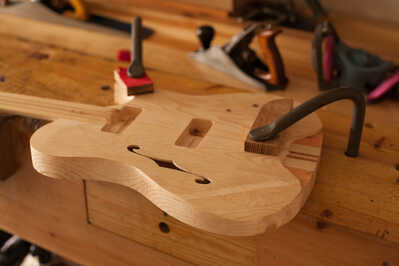

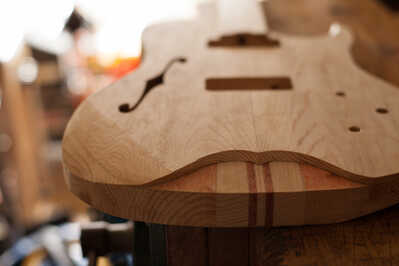

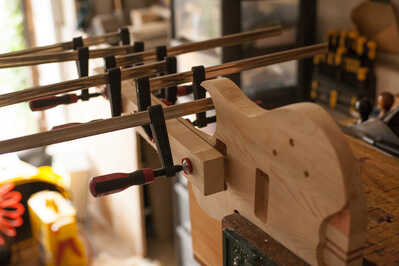

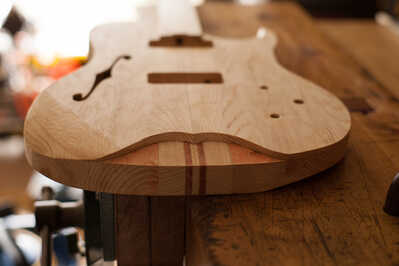

I carved the comfort carve and glued the fretboard on, using mark's clamping caul, it's just a piece of 4 x 2 with hardboard strips on the edges, hopefully you can see how nice the curves look on the left side, I might carve the right side as well to make it symetrical for the topbut there's less wood to take away, could do with some opinions on this before going ahead, regards, Ben.

GGBO2023prototype comfort carve fretboard glue up 3
GGBO2023prototype comfort carve fretboard glue up 4
GGBO2023prototype comfort carve fretboard glue up 1
GGBO2023prototype comfort carve fretboard glue up 2
GGBO2023prototype comfort carve fretboard glue up 5
GGBO2023prototype comfort carve fretboard glue up 6



This post was modified 10 months ago by tyreman


swepri, Koendb, tv1 and 4 people reacted
ReplyQuote
tyreman
(@tyreman)
Reputable Member
Technician
Rep Points: 516
Joined: 3 years ago
Posts: 101
Topic starter

it's sort of finished now apart from testing it with strings, I found out one of the tuner threads also doesn't work which was annoying, now I need just a single tuner to replace it,still better to find out now on a prototype, I should have checked it all when brand new though, lesson learnt.

finished+faultytuner 4
finished+faultytuner 6
finished+faultytuner 1
finished+faultytuner 2
finished+faultytuner 3
finished+faultytuner 5



This post was modified 10 months ago by tyreman


Koendb, tv1, Boo and 4 people reacted
ReplyQuote
Brian Walker
(@brie)
Reputable Member Customer
Semi Professional
Rep Points: 339
Joined: 1 year ago
Posts: 125


@tyreman Try using a tap and dye set to recut the thread where you can access it, it might just get it to work.



swepri, Koendb, tv1 and 4 people reacted
ReplyQuote
tyreman
(@tyreman)
Reputable Member
Technician
Rep Points: 516
Joined: 3 years ago
Posts: 101
Topic starter

@brie I would do that if I knew the exact size thread it is, I can't find any info on thread type or pitch e.t.c even though there's load of info on dimensions, I'm going to guess that's imperial with it being american. It seems to be the very start of the thread it can't latch onto it, I tried using the bushing on other tuners and it works just fine.

This post was modified 10 months ago by tyreman


Koendb, tv1, Boo and 3 people reacted
ReplyQuote
tyreman
(@tyreman)
Reputable Member
Technician
Rep Points: 516
Joined: 3 years ago
Posts: 101
Topic starter

also don't have access to tap and dye's but know a metal working guru who might be able to help.



Koendb, tv1, Boo and 3 people reacted
ReplyQuote
tyreman
(@tyreman)
Reputable Member
Technician
Rep Points: 516
Joined: 3 years ago
Posts: 101
Topic starter

I contacted sperzel so it looks like I might be able to get a single tuner either from them or a uk distributor, I simply couldn't resist stringing the guitar up today with some spare strings, it makes a sound! and is quite loud acoustically, now I've got to do it all again, this will be an entry for the great guitar build off scratch build competition, so for now that's it, prototype is finished, a lot learnt in a short space of time.

strungup prototype 3
strungup prototype 6
strungup prototype 1
strungup prototype 2
strungup prototype 4
strungup prototype 5
strungup prototype 7





Dan Hawkes, Koendb, tv1 and 5 people reacted
ReplyQuote
tyreman
(@tyreman)
Reputable Member
Technician
Rep Points: 516
Joined: 3 years ago
Posts: 101
Topic starter

the new tuner should be coming early next week, the company I bought the tuners from are sending me a spare one so that's a good outcome.



Koendb, swepri, Robin and 3 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 34905
Joined: 6 years ago
Posts: 3836


@tyreman I’ve somehow missed this until now. Nice work man, I’m loving it.
I especially like the input socket bit, I’ve thought of doing that myself. Was it Charvel or someone like that that first did it?
I did a pine prototype of a Kramer Floyd Rose Signature type guitar, hardtail to start with, a while back. It’s on here somewhere and I’ve yet to make a proper one and with an actual Floyd in it.
Im loving your choice of music by the way. Winger are one of the most underrated rock bands of their era, 80s and 90s. I’m still considering making a Reb Beach Ibanez copy.
I love that whole era of rock and there are so many iconic guitars for me to make that I always wanted as a teenager.
I was listening to LA Guns earlier. 🔥🤘😝🤘🎸🔥

Make guitars, not war 🌍✌️🎸



Koendb, Russ, swepri and 3 people reacted
ReplyQuote
tv1
 tv1
(@tv101)
Illustrious Member Customer Registered
Luthier
Rep Points: 28066
Joined: 4 years ago
Posts: 3037


Not another 12 string semi-hollow thru-neck Tele-esque build ...

😆



What a great build thread, and a few interesting design ideas that I might well pinch (sorry, "be inspired by") on a build of my own one day!

Be interesting to find out how it sounds and compares to a guitar made with more traditional materials.  I realise that this is "just" a prototype, but if it works and sounds good, there's no reason not to keep it.  Though finding a similar guitar to compare it against might be difficult!!

Online guitar making courses – guitarmaking.co.uk



Koendb, Russ, swepri and 3 people reacted
ReplyQuote
tyreman
(@tyreman)
Reputable Member
Technician
Rep Points: 516
Joined: 3 years ago
Posts: 101
Topic starter

@boo @tv101 thankyou both!



Koendb, Russ, swepri and 3 people reacted
ReplyQuote
Clinton
(@clinton)
Famed Member
Luthier
Rep Points: 4970
Joined: 4 years ago
Posts: 734


@tyreman Wow! Craftsman!



Koendb, Russ, swepri and 4 people reacted
ReplyQuote
tyreman
(@tyreman)
Reputable Member
Technician
Rep Points: 516
Joined: 3 years ago
Posts: 101
Topic starter

on the body I carved in another curve on the right side, also the replacement tuner has arrived today, thanks to northwest guitars for the great customer service, I'd highly recommend them.

alltuners+newcurve 1
alltuners+newcurve 2
alltuners+newcurve 3



This post was modified 10 months ago 2 times by tyreman


Dan Hawkes, Koendb, tv1 and 4 people reacted
ReplyQuote
tyreman
(@tyreman)
Reputable Member
Technician
Rep Points: 516
Joined: 3 years ago
Posts: 101
Topic starter

made a slideshow video of the prototype build, hope this is allowed here? if not I'll remove it.



swepri, Boo, tv1 and 3 people reacted
ReplyQuote
Koendb
(@koendb)
Famed Member
Luthier
Rep Points: 11568
Joined: 3 years ago
Posts: 769


@tyreman Nice! I love how you have the neck through to show through the end section on the top. I might use that idea in one of my future builds.



swepri, Russ, tyreman and 3 people reacted
ReplyQuote
Boo
 Boo
(@boo)
Illustrious Member
Luthier
Rep Points: 34905
Joined: 6 years ago
Posts: 3836


@tyreman Superb! A lovely build and inspiration for the rest of us.

Proud of you man! ✊

Make guitars, not war 🌍✌️🎸



swepri, tv1, Koendb and 3 people reacted
ReplyQuote
tyreman
(@tyreman)
Reputable Member
Technician
Rep Points: 516
Joined: 3 years ago
Posts: 101
Topic starter

what do you think of this headstock design? compared to the other one? this one is designed to have dead straight string pull and there's a bit more space for a decal or logo.

headstockmerge1y



This post was modified 9 months ago by tyreman


Koendb, Russ, Robin and 2 people reacted
ReplyQuote
swepri
(@swepri)
Honorable Member Customer
Luthier
Rep Points: 2556
Joined: 2 years ago
Posts: 216


Posted by: @tyreman

what do you think of this headstock design? compared to the other one? this one is designed to have dead straight string pull and there's a bit more space for a decal or logo.

I like the first one better. I think the second headstock looks a bit too long compared to the body. Or maybe the perspective makes it look that way.





Koendb, Russ, tyreman and 2 people reacted
ReplyQuote
tv1
 tv1
(@tv101)
Illustrious Member Customer Registered
Luthier
Rep Points: 28066
Joined: 4 years ago
Posts: 3037


Posted by: @tyreman

what do you think of this headstock design?

The camera angle probably exaggerates it further, but the headstock now looks very big (long) compared to the size of the body.  I realise that it's always difficult to get 12 strings on to a headstock, but I think I'd go with your first option.

Unless you fancy having a go at something like this ...




Online guitar making courses – guitarmaking.co.uk



Dan Hawkes, Koendb, Russ and 4 people reacted
ReplyQuote
