Surface routing jig

Page 1 / 3
  RSS

cheesewhisk
(@cheesewhisk)
Crafter
Rep Points: 838
Joined:5 months ago
Posts: 100
07/04/2021 7:06 pm

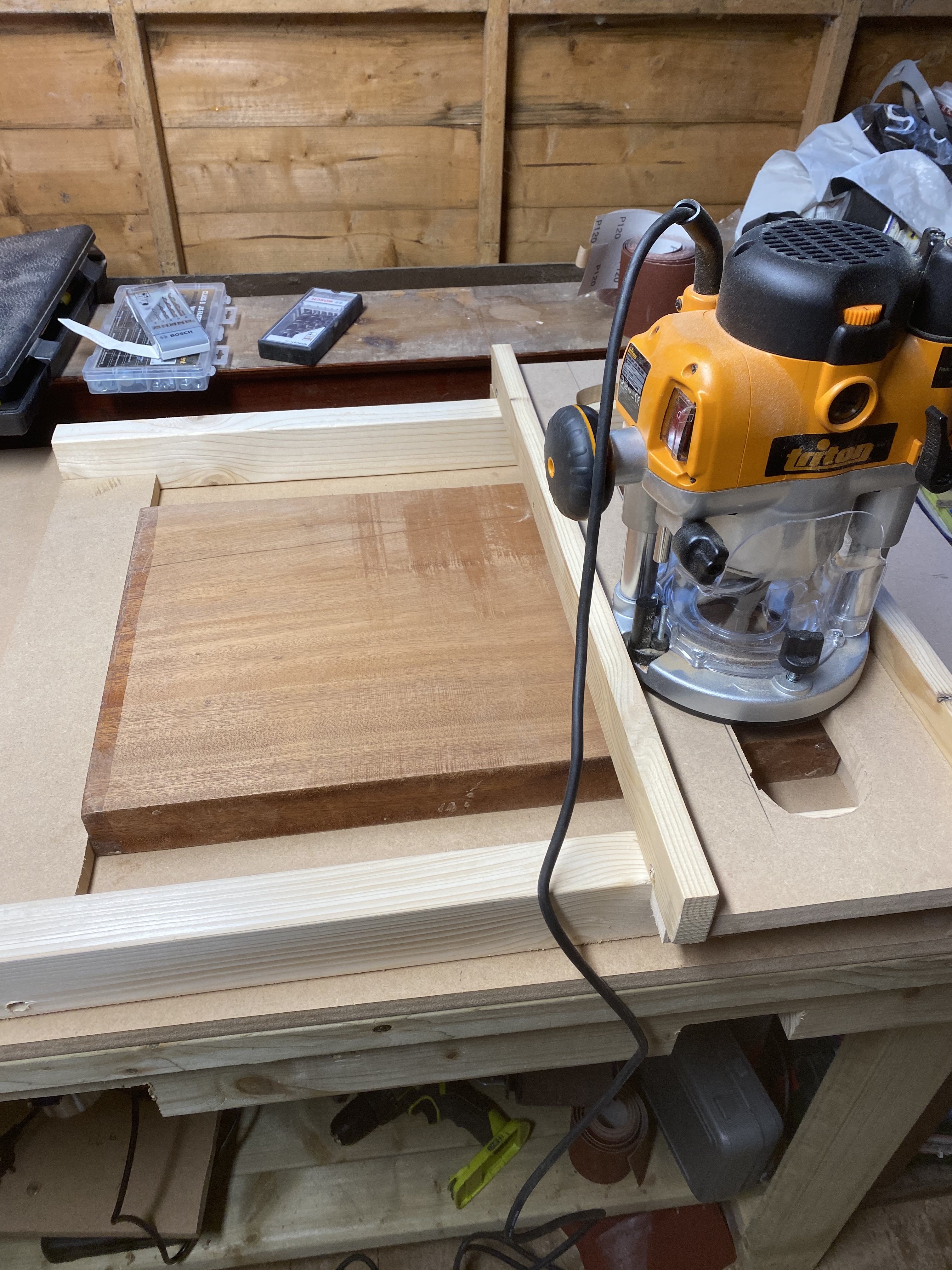

5BF8B477 A202 442F A542 873D8032534D

getting back on the horse as they say, because my blank needs a bit of work (I bought before I found Mark) I decided to have a go at making a surface routing jig and wanted to see if there’s anything else I need to do or not do before I use it. The plan is to screw it to my bench.






Clinton, Robin, Koendb and 4 people liked
tv1
 tv1
(@tv101)
Luthier
Rep Points: 16760
Joined:11 months ago
Posts: 1962
07/04/2021 7:18 pm

That's a very handy jig.

I've got something similar, and it's got me out of jail a few times.

Pointers;

  • Looks like your workpiece is secured in place - make sure you wedge it on the sides too, so it can't move in any direction.
  • I usually just clamp my jig to a solid surface which makes it easier to remove than screwing it in place.
  • Critical to make sure that there's no deflection in the cross piece.  That looks like 18mm mdf, so should probably be OK.  I've used 5mm (I think) steel angle as the support for my router, and that stays nice and level.
  • Maybe coat the top of the side pieces with something that'll keep friction to a minimum.  You could just gloss them, or use the PTFE (I think) tape.  You want that movement to be as free and easy as possible.

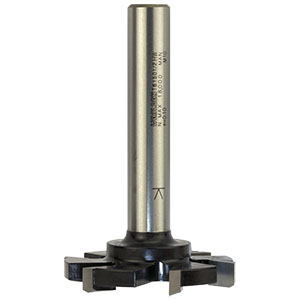

  • Get a decent thicknessing bit - I've got one of these (see pic/link below), and it does the job.
  • Cut a little - very little - in each pass.  Two mm is too much.

https://www.wealdentool.com/acatalog/Surface-Trim.html



Online guitar making courses – guitarmaking.co.uk


Robin, Koendb, Deej and 4 people liked
ReplyReplyQuote
cheesewhisk
(@cheesewhisk)
Crafter
Rep Points: 838
Joined:5 months ago
Posts: 100
07/04/2021 7:32 pm

Cheers @tv101 its 18mm msg with a couple of 1x2 pine rails.

Ive just got a very similar bit but it’s good to know decent places to buy from.

2mm is too much, that’s great, that’s definitely where I’ve been going wrong 🙂


Robin, Koendb, Deej and 4 people liked
ReplyReplyQuote
cheesewhisk
(@cheesewhisk)
Crafter
Rep Points: 838
Joined:5 months ago
Posts: 100
07/04/2021 7:46 pm

MDF not msg


Robin, Koendb, Boo and 4 people liked
ReplyReplyQuote
tv1
 tv1
(@tv101)
Luthier
Rep Points: 16760
Joined:11 months ago
Posts: 1962
07/04/2021 7:48 pm

MDF not msg

That would have confused me!

Online guitar making courses – guitarmaking.co.uk


Robin, Koendb, Boo and 3 people liked
ReplyReplyQuote
mattbeels
(@mattbeels)
Customer
Luthier
Rep Points: 13313
Joined:6 months ago
Posts: 836
07/04/2021 7:50 pm

Listen to MSG, got it...

Pratice on scrap...


Robin, Boo, tv1 and 3 people liked
ReplyReplyQuote
Deej
 Deej
(@deej)
Luthier
Rep Points: 10298
Joined:2 years ago
Posts: 834
07/04/2021 9:06 pm

It’s great @cheesewhisk and looks like something similar I built to do the same job..

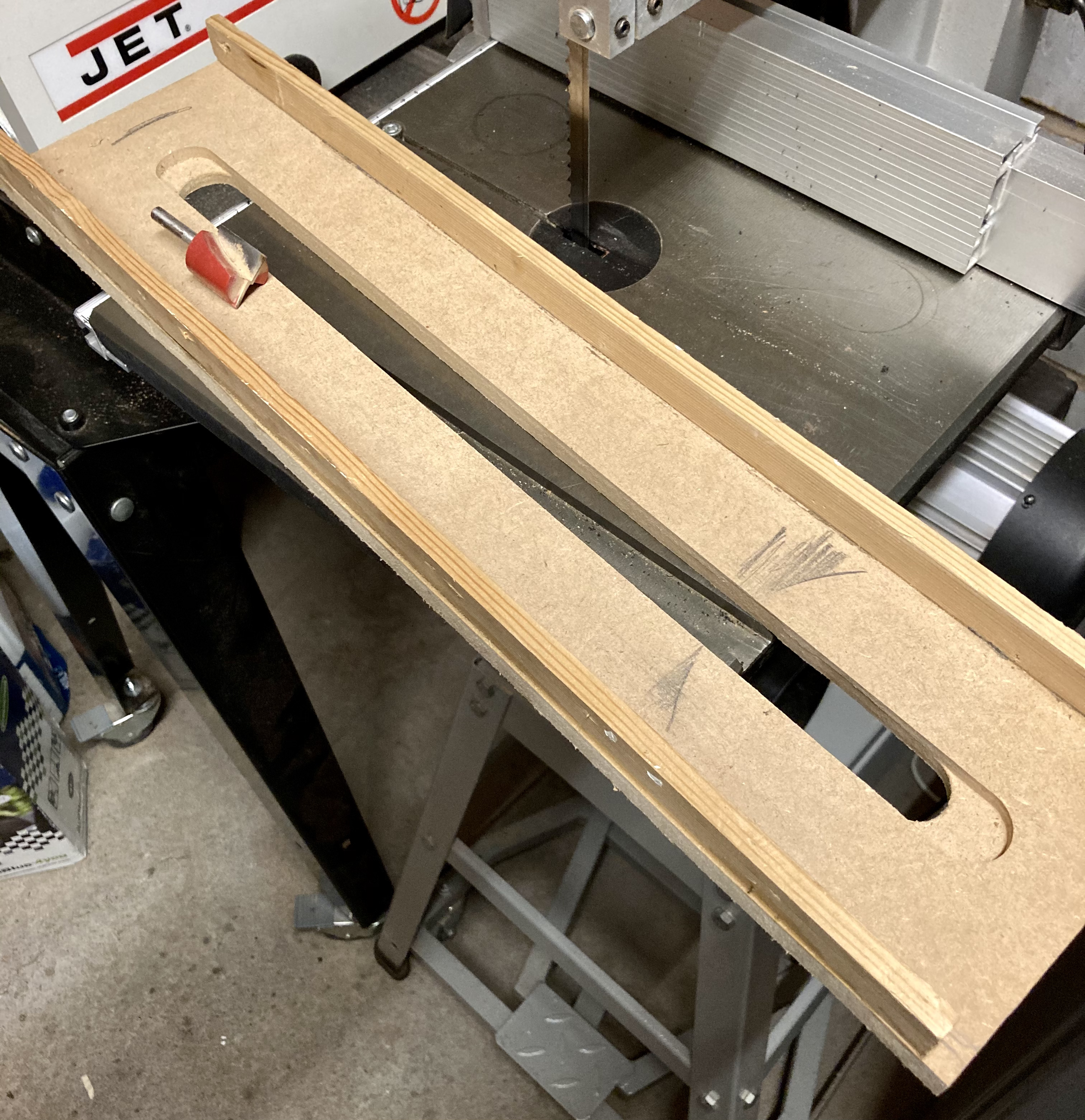

F506732D 4FEC 48EC BE85 A0F08F4DE071

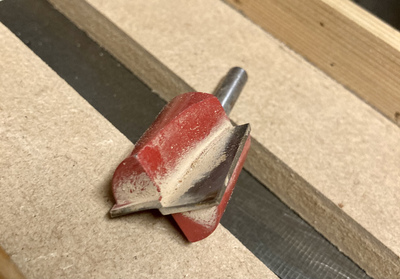

DB8AE044 A7F8 4925 9E28 3687973A7C1A





You can see it being used in anger from 0:04-0:12 on this build







I have too many guitars...said no one in the world..ever!


Clinton, Tej, mattbeels and 6 people liked
ReplyReplyQuote
cheesewhisk
(@cheesewhisk)
Crafter
Rep Points: 838
Joined:5 months ago
Posts: 100
07/04/2021 10:24 pm

That video is incredible @Deej




mattbeels, Robin, Koendb and 3 people liked
ReplyReplyQuote
tv1
 tv1
(@tv101)
Luthier
Rep Points: 16760
Joined:11 months ago
Posts: 1962
07/04/2021 10:36 pm

Pickups by "??" @Deej.

Is that a new brand?

Online guitar making courses – guitarmaking.co.uk


mattbeels, cheesewhisk, Robin and 4 people liked
ReplyReplyQuote
Boo
 Boo
(@boo)
Customer
Luthier
Rep Points: 19113
Joined:2 years ago
Posts: 2271
07/04/2021 10:50 pm

Great video @deej and such a nice build. 👍🎸

Online guitar making courses – guitarmaking.co.uk


mattbeels, cheesewhisk, Robin and 3 people liked
ReplyReplyQuote
Boo
 Boo
(@boo)
Customer
Luthier
Rep Points: 19113
Joined:2 years ago
Posts: 2271
07/04/2021 10:53 pm

getting back on the horse as they say, because my blank needs a bit of work (I bought before I found Mark) I decided to have a go at making a surface routing jig and wanted to see if there’s anything else I need to do or not do before I use it. The plan is to screw it to my bench.

@cheesewhisk Nice, I made a crappy one a while back but it’s about time I made a decent one like yours, well done. You’ve just inspired me. 👍

Online guitar making courses – guitarmaking.co.uk


mattbeels, cheesewhisk, Robin and 3 people liked
ReplyReplyQuote
Boo
 Boo
(@boo)
Customer
Luthier
Rep Points: 19113
Joined:2 years ago
Posts: 2271
07/04/2021 10:53 pm

Listen to MSG, got it...

@mattbeels Yeah, I’ll agree with that. 🤘😁🤘🎸

Online guitar making courses – guitarmaking.co.uk


mattbeels, cheesewhisk, Robin and 3 people liked
ReplyReplyQuote
Koendb
(@koendb)
Customer
Luthier
Rep Points: 1847
Joined:3 months ago
Posts: 166
07/04/2021 11:10 pm

I need to make one of those too! Gonna watch these vids tomorrow! thanks for the ideas guys 🙂


mattbeels, tv1, cheesewhisk and 4 people liked
ReplyReplyQuote
Deej
 Deej
(@deej)
Luthier
Rep Points: 10298
Joined:2 years ago
Posts: 834
07/04/2021 11:49 pm

That video is incredible @Deej

Thanks @cheesewhisk, there’s a few builds on this site and on my YT channel..

I have too many guitars...said no one in the world..ever!


mattbeels, Russ, Boo and 3 people liked
ReplyReplyQuote
Deej
 Deej
(@deej)
Luthier
Rep Points: 10298
Joined:2 years ago
Posts: 834
07/04/2021 11:50 pm

Great video @deej and such a nice build

Cheers @boo she comes back every now and again for a set up

I have too many guitars...said no one in the world..ever!


mattbeels, Russ, Boo and 3 people liked
ReplyReplyQuote
