Build report of my take on an Ikea kitchen countertop 🙂

Page 1 / 4
  RSS

Koendb
(@koendb)
Customer
Luthier
Rep Points: 1842
Joined:3 months ago
Posts: 165
27/02/2021 1:04 pm

In my first post, Hi From Belgium, I showed a work in progress on a DC Junior like guitar , made from an ikea kitchen tabletop.

Well , it is in a working state now, just waiting to be setup and finished ( Dahpne Blue nitro finish is what I am going for )

IMG 20210102 125119777

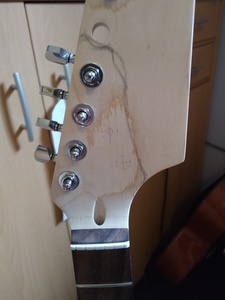

 This was the original neck shape, when I got it. So I deciced to make this a 4+2 headstock  for no particular reason

IMG 20210104 122732504
IMG 20210104 150647013

I got myself an existing plan for a DC Junior and adapt it a bit for the conversion to the bolt-on neck.

IMG 20210113 181641638

 Since I needed to insert the neck way more into the body, I also needed a deeper cutaway at the bottom horn.

IMG 20210116 141305990

Working on some templates, and made my first rookie mistake by already cutting out the neckpocket from the body template. No harm done, I just glued the cut-out back in.
The neck pocket template is way to small and I forgot to include the centerline, etc.. I am learning this as I go at that point.

IMG 20210116 183650402

This is the Ikea tabletop that soon will become a guitar body. I will screw this one up by routing out a way too big neck pocket.

IMG 20210206 164640172

Testing the neck pocket on a scrap piece of the same wood, just to make sure the size was ok.
Over to the real body, I tried to make a slight angle in the neck pocket by putting a thin piece of wood underneath the template, at the end of the template. My first couple of passes where perfect, but then I noticed I could not get much deeper with the router bit I had, so I needed to order a longer one. As I could not simply take of the template because of the angle. At some point, to cut a long story short, I managed to destroy both my template and the neck pocket cavity by not checking if the bearings where rolling on my template.
The following weekend, I took a new piece of countertop, created a new neck template ( this time , I immediately copied the template so I had a second one ) and went on.
I learned one lesson here, and that is , that even if you use a template, you still need to think things over more then once and keep checking everything you do., So this time, I made sure my template was locked in, and was easy to put back in exact the same position if I would need to take it off at some point, for whatever reason.

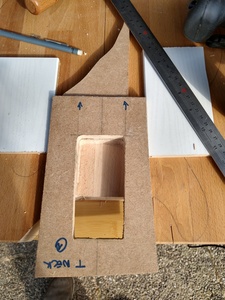

Test fitted the neck and the angle , looking good !

IMG 20210220 130020490 HDR
IMG 20210220 130038918
IMG 20210220 130133955 HDR

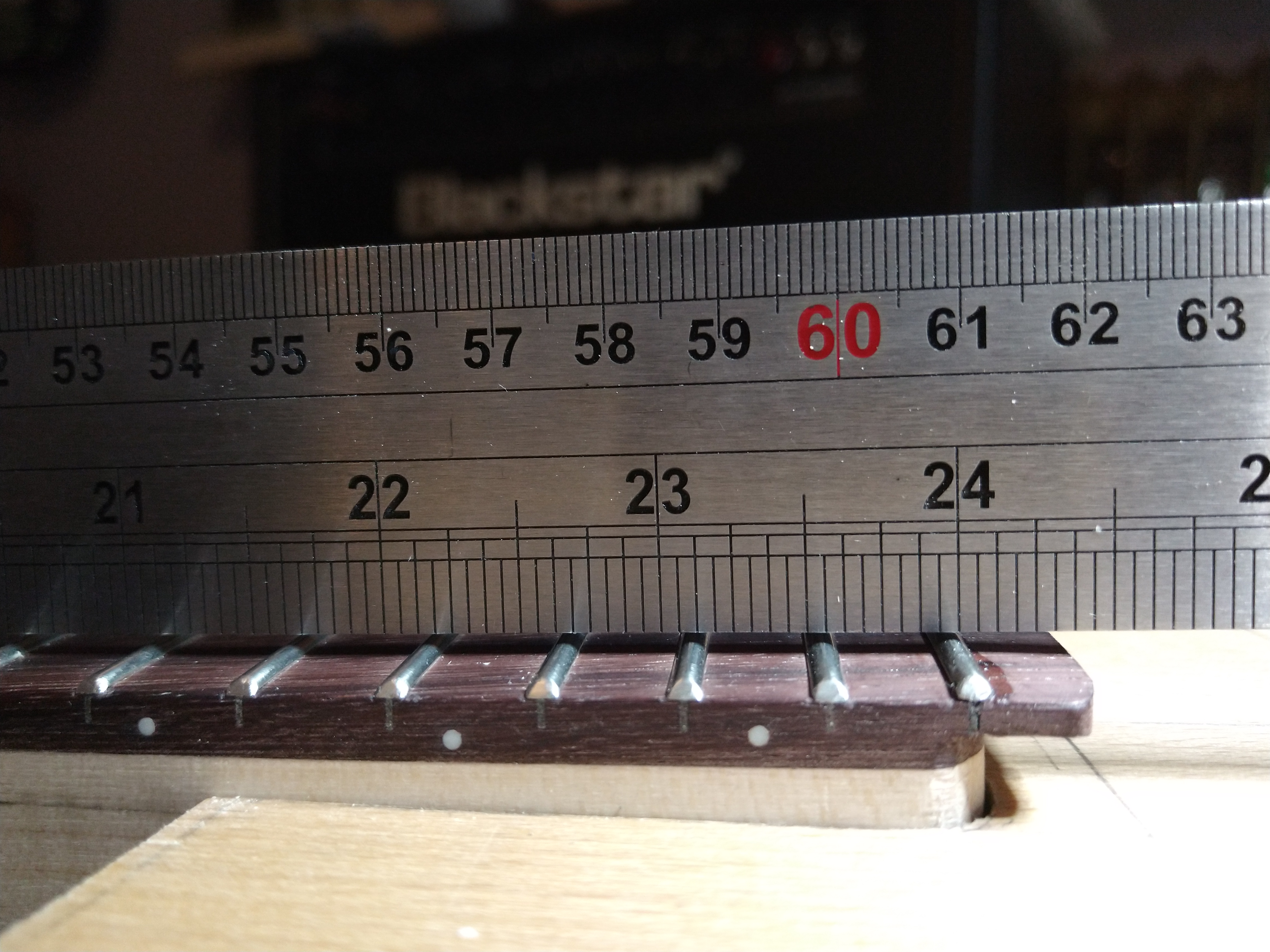

Then deciding where the pickups and bridge should go roughly and at the same time, just checking if I would have enough of an angle by placing the bridge at the minimum height it would end up with and I had a gap of about a mm between the bottom of the ruler and the top of the frets

IMG 20210220 214213043
IMG 20210220 220611500

I started the routing of the neck pickup cavity, and of course, not without an issue, I again managed to let the bearing slide off

the template and cut in the corner a bit. luckily it was just a shallow pass, so I was able to rectify this afterwards with some filler. The second cavity was a lot cleaner.
After drilling the holes for the controls, I used a jigsaw (as I dont have a bandsaw), to cut out a big part of the body.
Then finished by routing the body and the control cavity.

IMG 20210221 135010562
IMG 20210221 163144360
IMG 20210221 165635283
IMG 20210221 172852185
IMG 20210221 175702392
IMG 20210221 175713655

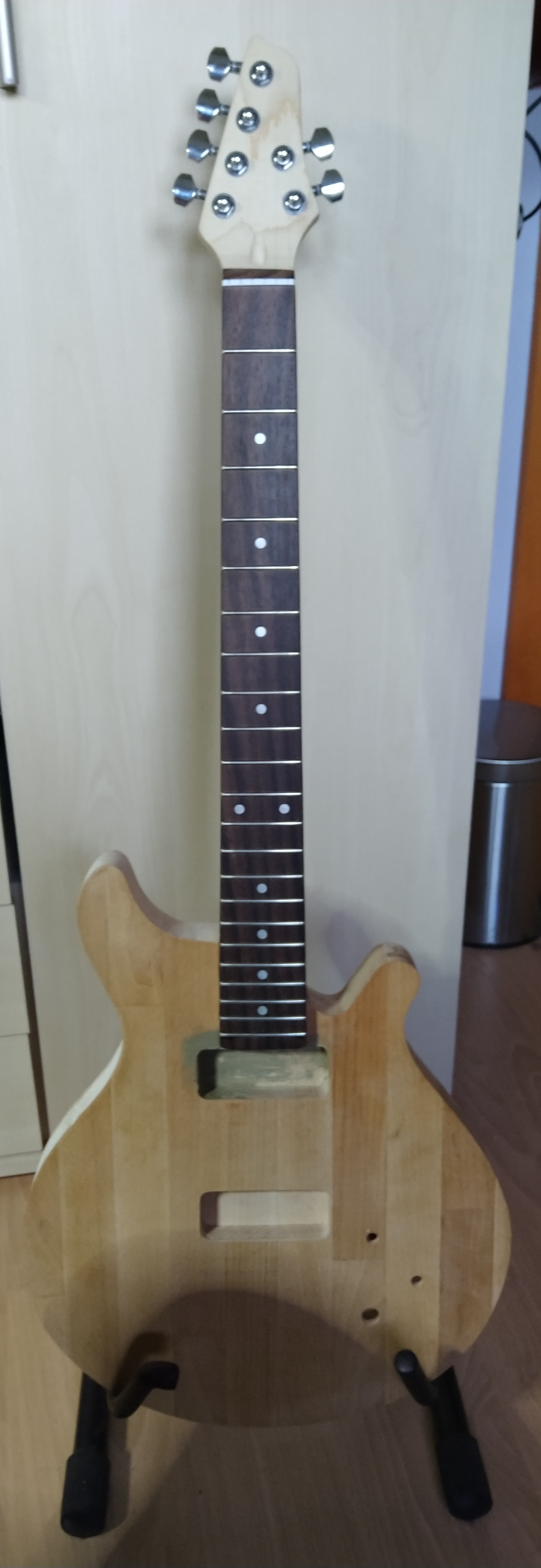

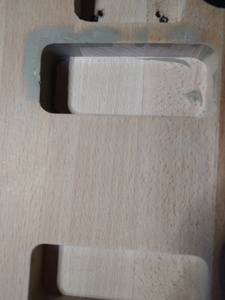

Test fitting the neck with ferules and used filler to fix the neck pickup cavity



IMG 20210223 174220473
IMG 20210223 174231816
IMG 20210223 174236717
IMG 20210223 174249215
IMG 20210224 164313461

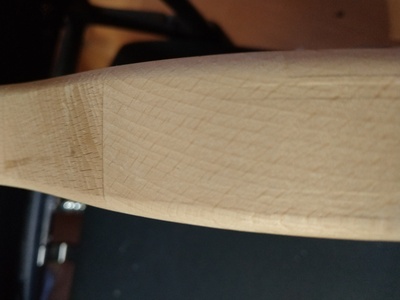

Rounding the edges with a roundover bit and drilled the hole for the jack plug with a 22mm forstner bit.

IMG 20210224 164333190
IMG 20210224 164357023
IMG 20210224 184043949

 And this is the result with all hardware mounted, and initial stringup.
I did had an issue with the first location where I put the holes for the bridge posts. they where a little offset by a mm, making the strings not 100% aligned on the fretboard. I also put the bridge a tad too close to the fretboard. Plugging the holes and redrilling them fixed the issue. Now I have a working guitar, just need a proper fret leveling, action adjustment and general setup really. After that, finishing phase. But that is for next time!

IMG 20210227 030926646
IMG 20210227 083412800
IMG 20210227 030919069
